Meet Two 40V Auto-Grade Components with Low RDS(on)
MCC Semi is pleased to introduce our latest components designed to change the game in automotive and other demanding applications. With 40V and on-resistance of only 1.1mΩ, MCACLS290N04YHE3 and MCACLS330N04YAHE3 are two N-channel power MOSFETs with unlimited possibilities.
AEC-Q101 qualification ensures quality and reliability. But where these components really shine is their superior thermal performance and efficiency. The DFN5060 package with dual-side cooling (DSC) features thermal pads on the top and bottom with an additional transfer path on the top for junction-to-case thermal resistance as low as 0.67⁰C/W. This feature offers a better temperature rise margin than traditional DFN5060 packages.
Whichever of these DSC MOSFETs you choose, you’ll get exceptional thermal performance and reliability for a host of challenging applications.
MCACLS330N04YAHE3
Features & Benefits:
- AEC-Q101 qualified
- Split-gate trench (SGT) technology
- Superior overall thermal performance compared to DFN5060 package
- Exceptional top heatsink efficiency
- Low RDS(on)
- High power density package
- High junction temperature up to 175℃

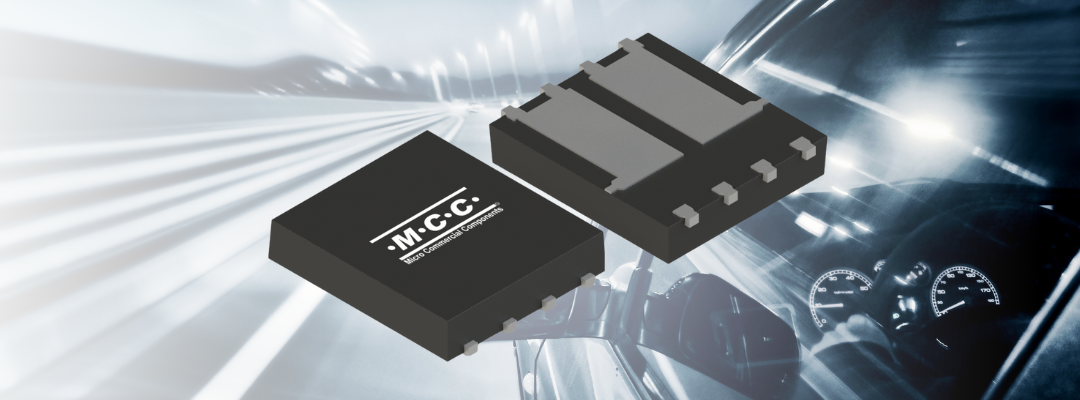

- Compact DFN5060-DSC/DFN 5x6 package (5mm x 6mm) with dual-side cooling
Applications
Superior thermal performance and reliability in a compact package make our latest MOSFETs ideal for a range of demanding applications.
|
|
|
|
|
Automotive |
Industrial |
Consumer |
|
|
|
Product Attributes, Parametrics & Datasheets
|
Product |
Type |
Package |
Drain-Source Voltage |
Drain-Source On- |
Continuous |
Mounting Type |
Datasheet |
|
N-Channel Power MOSFET |
DFN5060-DSC |
40V |
1.1 mΩ |
290A |
Surface-mount (SMD) |
||
|
N-Channel Power MOSFET |
DFN5060-DSC |
40V |
1.1 mΩ |
330A |
Surface-mount (SMD) |
Use the MCC website chatbot to quickly request a sample or ask a question.
Explore our essential MOSFET guide to learn about the various types and technologies, especially the 40V options.
