2.9 mΩ Rds(on) and AEC‑Q101 Qualification in a Thermally Efficient DFN5060 Package
MCC introduces the MCAC2D9N04YHQ, a 40 V single N‑Channel MOSFET purpose-built for designers who need to switch high currents in minimal board space while maintaining high efficiency and safe operating temperatures in 12 V and 24 V systems. Using advanced split-gate trench technology, this device achieves an ultra-low 2.9 mΩ Rds(on) in a compact DFN5060 (5.0 mm × 6.0 mm) package, cutting conduction and switching losses and enabling high power density in space-constrained layouts.
AEC-Q101 automotive qualification and a robust 40 V VDS rating provide reliable operation under voltage spikes and harsh electrical conditions, making it well-suited for EV body electronics, DC-DC converters, battery management systems, energy storage, and motor control. A low 1.4 °C/W junction-to-case thermal resistance improves heat transfer and supports high current operation without bulky thermal solutions, while RoHS and halogen-free compliance ensure the MCAC2D9N04YHQ fits seamlessly into environmentally responsible, regulation-ready designs.

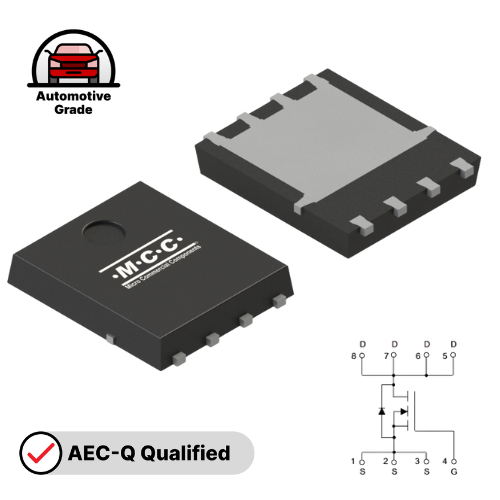

.png?width=500&height=500&name=MCC%20launches%2040%20V%20N%E2%80%90Channel%20MOSFET%20for%20Ultra-Compact%2c%20High-Current%20Power%20Designs%20MCAC2D9N04YHQ%20-%20mcc%20semi%20-%20micro%20commercial%20components%20500x500%20%20(1).png)
Features & Benefits:
- AEC-Q101 qualified for automotive-grade reliability and robustness
- Split-Gate Trench MOSFET technology optimized for low on-resistance and high switching speed
- Low Rds(on) of 2.9 mΩ (max) at Vgs = 10 V, minimizing conduction losses, reducing heat generation, and improving overall system efficiency
- 40 V drain-source voltage (VDS) rating, providing ample margin for handling voltage spikes and ringing in 12 V and 24 V automotive battery systems
- Low thermal resistance of 1.4 °C/W (junction-to-case) to enhance heat transfer and support stable operation at higher power levels
- Compact DFN5060 package (5.0 mm × 6.0 mm) enabling ultra-compact, high-current designs with excellent thermal performance
Applications
|
|
|
|
|
|
|
Automotive & EV Systems |
Industrial Power Conversion |
General Load Management & Switching |
Energy Storage & Battery Management |
Motor Drives & Motion Control |
|
|
|
|
|
Product Attributes, Parametrics & Datasheet
|
Product |
Type |
Package |
Drain-Source |
Drain-Source |
Drain |
Drain-Source |
Datasheet |
|
Power MOSFET |
Single N |
40 |
145 |
0.0029 |
Now available, purchase directly from MCC or through our authorized distributors.
For technical inquiries or sample requests, contact MCC for support.
For a deeper dive into MOSFET applications and design considerations, get our essential guide.
