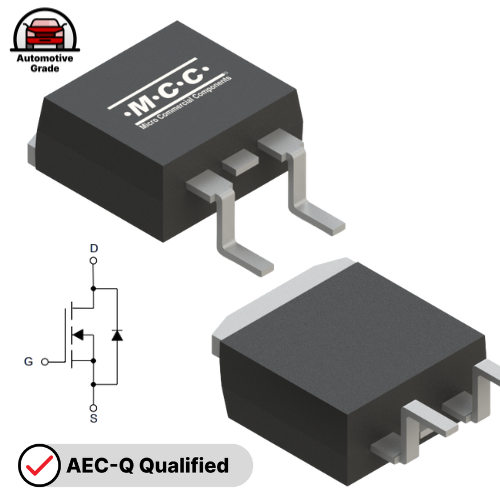

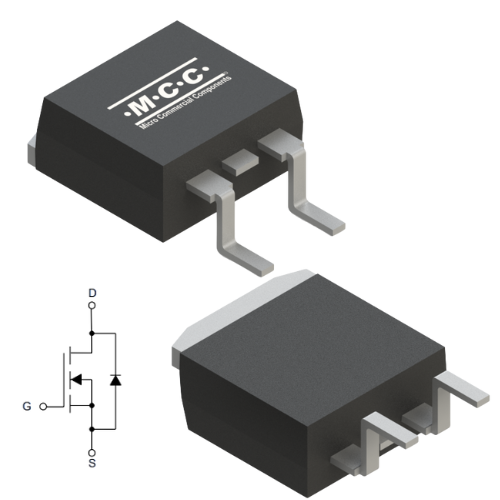

40V, 3.0mΩ, 133A AEC‑Q101 Qualified MOSFET in a Rugged D2‑PAK Package for Automotive Power Applications
MCC introduces the MCB3D0N04YLHE3, a high‑current, automotive‑grade N‑Channel MOSFET engineered to address the challenges of power efficiency, heat dissipation, and long‑term reliability in vehicle electronics. Designed for 12V and 24V systems, this device combines an ultra‑low 3.0mΩ on‑resistance with a 133A continuous current capability to minimize conduction losses while supporting demanding load conditions.
Featuring a 40V drain‑source rating and advanced split‑gate trench technology, the MCB3D0N04YLHE3 delivers low‑loss switching and strong tolerance to voltage transients common in automotive power rails. Housed in a rugged D2‑PAK package and qualified to AEC‑Q101 standards, it offers optimized thermal performance and dependable operation under high current and elevated temperature conditions, making it well suited for power switching and control functions across automotive and industrial systems.
Features & Benefits:
- AEC-Q101 qualified for automotive-grade reliability
- N-Channel MOSFET optimized for high-current automotive and industrial power applications
- Split-Gate Trench MOSFET technology for low on-resistance and fast switching performance
- Ultra-low RDS(on) of 3.0mΩ (max) at VGS = 10V, reducing conduction losses and heat generation
- High continuous drain current capability up to 133A
- 40V drain-source voltage rating suitable for 12V and 24V system architectures
- Low junction-to-ambient thermal resistance of 40°C/W for effective heat dissipation
- D2‑PAK package for robust mechanical strength and efficient thermal management
- Package size: approximately 10.2 mm × 8.5 mm (D2‑PAK footprint)
Applications
The MCB3D0N04YLHE3 is well suited for a wide range of automotive and industrial power designs where high current capability, low losses, and reliable thermal performance are required. Its robust construction and electrical characteristics enable dependable operation across multiple system-level functions.
%20in%20electric%20vehicles%20%20-%20mcc%20semi%20-%20500x300.png?width=206&height=124&name=Body%20electronics%20and%20body%20control%20modules%20(BCM)%20in%20electric%20vehicles%20%20-%20mcc%20semi%20-%20500x300.png) |
%20%20mcc%20semi%20micro%20commercial%20components%20500x300.png?width=212&height=127&name=Battery%20management%20systems%20(BMS)%20%20mcc%20semi%20micro%20commercial%20components%20500x300.png) |
 |
 |
|
Automotive – Body & Chassis Systems |
Automotive – Power Management |
Automotive & Industrial – Power Switching |
Automotive & Industrial – Motion Control |
|
|
|
|
Product Attributes, Parametrics & Datasheet
|
Product |
Type |
Package |
Numbers of functions |
Channel |
Drain-Source |
Gate-Source |
Drain |
Drain-Source |
Data-sheet |
|
Power MOSFET |
D2-PAK |
Single |
N |
40 |
±20 |
133 |
0.003 |
Now available, purchase directly from MCC or through our authorized distributors.
MCC MOSFETs deliver reliable switching, low on-resistance, and compact footprints for industrial and automotive applications, including AEC-Q101 qualified options and efficient packages across diverse power ranges. Learn more in The Essential Guide to 40V MOSFET Functions & Features or explore our full Power MOSFET portfolio.
For technical inquiries or sample requests, contact MCC for support.
