AEC-Q101 certified Dual 25mΩ N-Channel MOSFET in PDFN-5060-8D package

MCC’s MCACD033N06Q-TP automotive grade 20V dual N-channel MOSFET will enhance your designs with a low RDS(on) of 25mΩ, a 175⁰C operating junction temperature and high current density. The compact 5x6mm PDFN5060 package is ideally suited for automotive applications such as load switches, DC-DC converters, synchronous rectifiers, or automotive relays. 

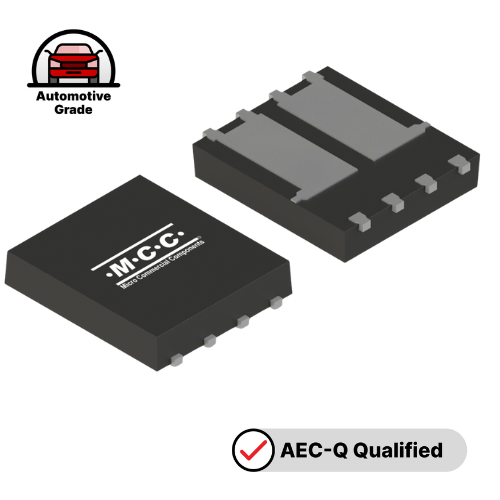

new MCACD033N06Q-TP automotive grade 20V dual N-channel MOSFET - mcc semi - micro commercial components 500x500

AEC-Q101 certified

Features & Benefits:
  • AEC-Q101 qualified (automotive-grade reliability) 
  • Dual N-channel, 20 V MOSFETs 
  • Trench Power LV MOSFET technology 
  • High-density cell design for Low RDS(on): 25 mΩ (typical) and higher current capability 
  • Excellent thermal performance with exposed pad for heat dissipation 
  • Operation up to 175°C junction temperature 
  • Compact PDFN-5060-8D package 

Product Highlights

Dual 20V N-Channel MOSFET 

1

Enhanced Efficiency

Low 25 RDS(on) and trench power LV technology reduce conduction and switching losses, boosting overall system efficiency. 

Dual 20V N-Channel MOSFET 

2

Reliable Thermal Management 

PDFN-5060-8D package with exposed thermal pad provides strong heat dissipation, supporting stable operation 175°C junction temperature. 

Dual 20V N-Channel MOSFET 

3

Compact, High-Density Design 

Dual N-channel integration in a 5 x 6 mm footprint enables space-saving layouts, higher current density, and simplified routing in tight automotive PCBs. 

Dual 20V N-Channel MOSFET 

4

Automotive-Grade Reliability 

AEC-Q101 qualification ensures robust performance and long-term durability for load switches, motor drivers, hot-swap, PLC outputs, and PWM applications. 

Applications

The MCACD033N06Q-TP’s dual 20 V N-channel architecture, low RDS(on), and thermally efficient PDFN-5060-8D package make it a versatile choice across automotive, industrial, and embedded power domains. Its AEC-Q101 qualification and 175°C junction capability support dependable operation in space-constrained designs that demand high current density and low losses. 

automotive car mcc semi micro commercial components

electric motors - mcc semi micro commercial components 500x300

telecommunication applications - mcc semi - micro commercial 500x300

Automotive 

Industrial and Automation 

Networking and Telecom 

  • Load switches H-bridge motor drivers
  • Automotive relays/loads replacement 
  • PWM drivers
  • Hot-swap circuits
  • PLC output drivers 
  • Motor control stages
  • Hot-swap and protection modules for industrial boards 
  • High-side/low-side switching in factory equipment 
  • Hot-swap controllers for line cards and modules 
  • Power distribution switching for routers and base stations 



Product Attributes, Parametrics & Datasheet

Product

Type

Package

Drain-Source
Voltage
VDS(V) 


Gate-Source
Voltage
VGS (V)

Datasheet

MCACD033N06Q

Dual N-Channel MOSFET

PDFN5060-8D

60

±20

Info



Now available, purchase directly from MCC or through our authorized distributors. 

For a deeper dive into our portfolio, check out our MOSFET catalog. When reliable switching, low on-resistance, and a compact footprint are needed, these devices provide the performance and reliability required for industrial and automotive applications. MCC’s array of MOSFETs includes AEC-Q101 qualified solutions, as well as efficient package options in diverse configurations and power ranges. 

For technical inquiries or sample requests, contact MCC for support. 

Use the MCC chatbot to quickly request a sample or ask a question.
