Efficiency in a Low-Profile Package with Low Gate Charge

Introducing the latest addition to MCC’s advanced automotive MOSFET portfolio — the 60V MCGWF5D5N06YLHE3. Engineered for efficiency in demanding scenarios, this component features an impressively low on-resistance of 5.5mΩ and low conduction losses.

With AEC-Q101 qualification, our MOSFET meets rigorous automotive standards and won’t let you down in critical applications.

Equipped with split-gate trench (SGT) technology, this component adds exceptional thermal performance to its list of desirable features, along with the ability to perform at operating junction temperatures of up to 175°C.

A low gate charge (QC) ensures efficient operation across a wide range of loads, making MCGWF5D5N06YLHE well-suited for diverse electronic systems.

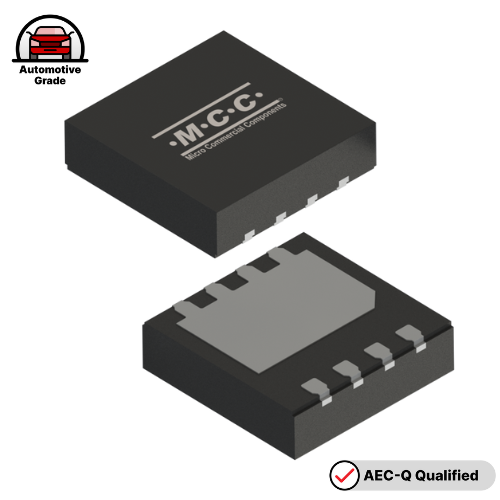

For engineers looking to balance efficiency, performance, and size constraints, this low-profile MOSFET in the DFN3333-8 package with side-wettable flanks is a standout solution.

Features & Benefits:
  • AEC-Q101 Qualified: Ensures reliability and quality for challenging automotive environments.
  • SGT Technology: Delivers superior performance and efficiency.
  • Low On-Resistance: Minimizes power losses with an impressive RDS(on) of 5.5mΩ.
  • Low Conduction Losses: Optimize energy efficiency in various applications.
  • High Operating Junction Temperature: Provides enhanced durability with capability of operating junction temperatures up to 175°C.
  • Low Gate Charge (QG): Facilitates high efficiencies at both low and high loads.
  • Low-Profile Package: Promotes compact designs with DFN3333-8(SWF) package measuring 3.3mm x 3.3mm.
  • Side-Wettable Flanks: Enable automated optical inspection (AOI) capabilities

Product Highlights

MCC’s new MOSFET packs robust performance and efficiency into a compact package with side-wettable flanks. Its proven reliability and efficient design are sure to enhance various automotive electronics.

High-Performance Automotive 60V N-Channel MOSFET with Low RDS(on)

1

Enhanced Efficiency

MCGWF5D5N06YLHE3 features low conduction losses and an impressive RDS(on) of only 5.5mΩ, reducing overall power consumption while boosting efficiency.

High-Performance Automotive 60V N-Channel MOSFET with Low RDS(on)

2

Reliable Performance

Our MOSFET is AEC-Q101 qualified and proven to meet stringent auto industry standards for reliability, ensuring consistent performance over time.

High-Performance Automotive 60V N-Channel MOSFET with Low RDS(on)

3

High Thermal Capability

An operating junction temperature capability of up to 175°C makes this MOSFET essential for stable performance in harsh automotive environments.

High-Performance Automotive 60V N-Channel MOSFET with Low RDS(on)

4

Application Versatility

A low gate charge and efficiency at varying loads make our 60V MOSFET ideal for a range of applications, including DC-DC converters, motor drivers, and electric power steering systems.

Applications

This powerful MOSFET is designed to meet diverse demands of a variety of automotive systems. Leverage its efficiency and reliability to optimize your projects in applications such as:

converters - mcc semi - micro commercial components 500x300

Automotive Applications  AEC-Q101 qualified Infotainment systems- MCC - Micro commercial components

motor drive industrial - mcc semi - micro commercial components 500x300

lighting and power control - mcc semi - micro commercial components - 500x300

Power Management

Automotive Control Systems

Motor Controls

Lighting

  • DC-DC converters
  • Load switching
  • Battery management systems (BMS)
  • Seat control systems
  • Electric power steering (EPS)
  • Climate control systems
  • Infotainment systems
  • Motor drives
  • Electric vehicle (EV) drive systems
  • Robotics and automation
  • Lighting controls
  • LED drivers



Product Attributes, Parametrics & Datasheet

Product

Type

Package

Drain-Source
Voltage
VDS

Drain-Source
On-Resistance
(max.)RDS(on)

Mounting Type

Datasheet

MCGWF5D5N06YLHE3

N-Channel Power MOSFET

DFN3333-8(SWF)

60V

5.5mΩ

Surface-Mount (SMD)

Info



Contact MCC to request a sample or ask a question.



For a deeper dive into MOSFET applications and design considerations, get our essential guide.
