Minimize Conduction & Switching Losses in Compact DFN8080A Package

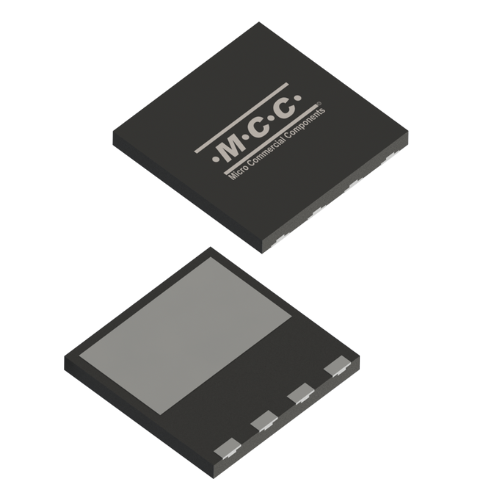

MCC Semi is thrilled to introduce our first high-voltage MOSFET with Kelvin source pin in the compact DFN8080A package. Designed to help engineers balance costs and performance, the 600V MSJL120N60FH leverages superjunction technology and an integrated FRED body diode to facilitate high-speed switching and recovery.
Its low gate charge and RDS(on) of only 100Ω (typ.) significantly improve switching speeds and reduce losses in a range of demanding applications. Featuring junction-to-case thermal resistance of 0.47K/W, this MOSFET assures reliable operation in high-temp environments, making it an intelligent choice for motor drives, solar inverters, industrial controllers, and power supplies.
With a height of less than 1mm, its low-profile DFN8080A package is well-suited for high-frequency applications where space is limited, and performance is mission-critical.
For engineers looking to boost efficiency and minimize losses, MSJL120N60FH boasts the perfect combination of features for high-voltage, space-constrained scenarios.
Features & Benefits:
- Superjunction technology: Enhances efficiency by reducing on-state resistance.
- Low on-resistance: Minimizes power dissipation at 100mΩ (typ.).
- Low conduction losses: Improves overall system efficiency.
- Low gate charge: Facilitates increased switching speeds.
- Kelvin source pin: Dramatically reduces switching losses while enhancing efficiency.
- Excellent thermal resistance: Junction-to-case thermal resistance of 0.47K/W ensures stable operation amid demanding conditions.
- Integrated FRED body diode: Reduces reverse recovery time for improved switching.
- High-speed switching: Optimal for high-frequency applications.
- Compact package size: DFN8080A package with a low-profile height of less than 1mm, perfect for space-constrained designs.
Applications
Our advanced 600V MOSFET was engineered to address the needs of diverse yet challenging industries and applications.
|
|
|
|
|
|
Power Supply & Conversion |
Motor Control |
Renewable Energy |
Industrial Automation |
|
|
|
|
Product Attributes, Parametrics & Datasheet
|
Product |
Type |
Package |
Drain-Source Voltage VDS |
Drain-Source On-Resistance RDS(ON) |
Mounting Type |
Datasheet |
|
N-Channel Power MOSFET |
DFN8080A |
600V |
100mΩ |
Surface-Mount (SMD) |
