# MCC Introduces a 60V Dual N-Channel MOSFET Array for Compact Power Designs
# MCC Introduces a 60V Dual N-Channel MOSFET Array for Compact Power Designs
.png?width=50&height=50&name=mcc%20150x150%20(1).png)
by [MCC](https://solutions.mccsemi.com/news/author/mcc)
May 01, 2026
## Low 8.5 mΩ RDS(on) and 50A Current Capability in a PDFN5060-8D Package
MCC introduces the [MCACD8D5N06YL](https://www.mccsemi.com/products/mosfets/power-mosfets/mcacd8d5n06yl), a dual N-channel MOSFET array designed for high-current power switching in space-constrained designs. By integrating two matched 60 V MOSFETs into a single PDFN5060-8D package, the device reduces component count, simplifies gate drive routing, and enables more compact and efficient power stage layouts while maintaining strong current capability and thermal performance.
With a low 8.5 mΩ RDS(on) and split-gate trench technology, the MCACD8D5N06YL minimizes both conduction and switching losses to improve overall system efficiency. The matched device characteristics within the dual configuration support balanced current sharing and more predictable switching behavior, which is critical in synchronous designs and parallel power stages. Supporting up to 50 A continuous drain current, it enables reliable operation under demanding load conditions while reducing overall design complexity.
The thermally efficient PDFN5060-8D package enhances heat transfer through a low-resistance thermal path, supporting stable junction temperatures in high-density layouts. This combination of electrical and thermal performance makes the device well suited for DC-DC converters, load switching, and motor control applications across consumer and industrial systems.

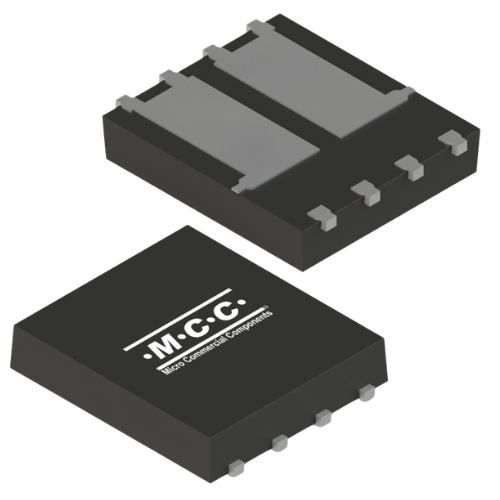

.png?width=500&height=500&name=MCACD8D5N06YL%20dual%20N-channel%20MOSFET%20PDFN5060-8D%20package%20%20-%20mcc%20semi%20-%20micro%20commercial%20components%20(1).png)
[60V Dual N-Channel MOSFET](https://www.mccsemi.com/products/mosfets/power-mosfets/mcgd115np10l)
##### Features & Benefits:
- Dual N-channel MOSFET array integrating two matched power switches in a single package
- Split-gate trench MOSFET technology optimized for low switching losses
- Low RDS(on) of 8.5 mΩ (max) at VGS = 10 V
- 60 V drain-source voltage (VDS) rating
- Up to 50 A continuous drain current (TC)
- 56 W maximum power dissipation
- PDFN5060-8D surface-mount package for compact, high-density layouts
- Strong thermal performance for reliable high-power operation
[MCACD8D5N06YL](https://www.mccsemi.com/products/mosfets/power-mosfets/mcacd8d5n06yl)
## Product Highlights
60V Dual N-Channel MOSFET
### 1
###### Reduced PCB Footprint
Integrates two MOSFETs in a single package, lowering component count and simplifying layout in compact designs.
60V Dual N-Channel MOSFET
### 2
###### High System Efficiency
Low RDS(on) and split-gate trench technology reduce conduction and switching losses.
60V Dual N-Channel MOSFET
### 3
###### Robust Power Handling
60 V rating and up to 50 A continuous current support demanding load conditions.
60V Dual N-Channel MOSFET
### 4
###### Improved Thermal Performance
PDFN5060-8D package enables efficient heat dissipation and stable operation at higher power levels.
## Applications
|  |  |  | %20cabinet%20-%20mcc%20semi%20500x300.png?width=245&height=147&name=_industrial%20battery%20energy%20storage%20system%20(BESS)%20cabinet%20-%20mcc%20semi%20500x300.png) |
| --- | --- | --- | --- |
| Consumer Electronics | Industrial Systems | Telecommunications Infrastructure | General Power Conversion |
| - DC-DC converters for adapters, chargers, and point-of-load regulation - Load switches in battery-powered and portable devices - Power management in home appliances and smart devices | - DC-DC converters and distributed power architectures - Motor control for actuators, pumps, and automation equipment - Load switching in factory power systems | - Power supplies for base stations and network equipment - DC-DC conversion for line cards, routers, and switches - Hot-swap and load switching circuits | - High-current switching stages in compact designs - Energy distribution and regulation modules |
## Product Attributes, Parametrics & Datasheet
| Product | Type | Package | Channel | Number of Functions | Drain-Source Voltage VDS (V) | Gate-Source Voltage VGS (V) | Drain Current ID (A) | Drain-Source On-Resistance RDS(ON) Max @VGS=10V (Ω) | Datasheet |
| --- | --- | --- | --- | --- | --- | --- | --- | --- | --- |
| [MCACD8D5N06YL](https://www.mccsemi.com/products/mosfets/power-mosfets/mcacd8d5n06yl) | Power MOSFET | PDFN5060-8D | N+P | Dual | 60 | ±20 | 50 | 0.0085 | [Info](https://www.mccsemi.com/pdf/products/MCACD8D5N06YL(PDFN5060-8D).pdf) |
Now available, purchase directly from MCC or through our authorized distributors.
For technical inquiries or sample requests, [contact MCC](https://solutions.mccsemi.com/news/mcc-introduces-a-60v-dual-n-channel-mosfet-array-for-compact-power-designs#hs-chat-open) for support.
###### Tags:
[New Product Introductions,](https://solutions.mccsemi.com/news/tag/new-product-introductions) [News,](https://solutions.mccsemi.com/news/tag/news) [MOSFETs](https://solutions.mccsemi.com/news/tag/mosfets)
#### Related Content
[](https://solutions.mccsemi.com/news/mcc-introduces-high-efficiency-60v-n-channel-power-mosfet-for-compact-designs)
March 27, 2026
#### [MCC Introduces High‑Efficiency 60V N‑Channel Power MOSFET for Compact Designs](https://solutions.mccsemi.com/news/mcc-introduces-high-efficiency-60v-n-channel-power-mosfet-for-compact-designs)
[](https://solutions.mccsemi.com/news/mcc-introduces-a-compact-60-v-n-channel-power-mosfet-for-high-current-designs)
April 3, 2026
#### [MCC Introduces a Compact 60 V N-Channel Power MOSFET for High-Current Designs](https://solutions.mccsemi.com/news/mcc-introduces-a-compact-60-v-n-channel-power-mosfet-for-high-current-designs)
[](https://solutions.mccsemi.com/news/mcc-introduces-a-high-efficiency-60v-n-channel-power-mosfet-for-compact-high-current-designs)
September 8, 2026
#### [MCC Introduces a High-Efficiency 60V N-Channel Power MOSFET for Compact High-Current Designs](https://solutions.mccsemi.com/news/mcc-introduces-a-high-efficiency-60v-n-channel-power-mosfet-for-compact-high-current-designs)
[](https://solutions.mccsemi.com/news/fresh-from-the-factory-mccs-new-compact-efficient-dual-20v-n-channel-mosfet)
October 9, 2025
#### [Fresh from the Factory: MCC’s New Compact, Efficient, Dual 20V N-Channel MOSFET ](https://solutions.mccsemi.com/news/fresh-from-the-factory-mccs-new-compact-efficient-dual-20v-n-channel-mosfet)
.png?width=50&height=50&name=mcc%20150x150%20(1).png)
Post by [MCC](https://solutions.mccsemi.com/news/author/mcc)
May 1, 2026
MCC is a leading integrated device manufacturer (IDM) of discrete semiconductors worldwide. Headquartered in the US, we deliver supply chain assurance, best-in-class support, and a diverse portfolio of 10,000+ advanced components to help customers innovate in automotive, industrial, and beyond.
#### Global Headquarters
130 W Cochran St, Unit B
Simi Valley, CA. 93065
[818.701.4933](tel:%20818.701.4933)
---
#### Company
- [Company Profile](https://www.mccsemi.com/Home/CompanyProfile)
- [Products](https://www.mccsemi.com/ProductCategories)
- [Catalogs](https://www.mccsemi.com/Home/Catalogs)
- [Contact Us](https://www.mccsemi.com/Contact)
- [Careers](https://www.mccsemi.com/careers)
---
#### Explore
- [Events](https://www.mccsemi.com/events)
- [Quality](https://www.mccsemi.com/Quality/Index)
- [Blog](https://solutions.mccsemi.com/news/tag/blog)
- [News](https://solutions.mccsemi.com/news-events)
- [History](https://solutions.mccsemi.com/history)
- [Knowledge Center](https://solutions.mccsemi.com/knowledge-center)
---
#### Distributors & Customers
- [Log In](https://www.mccsemi.com/Account/Login)
[Complete Discrete Semiconductor Solutions  Powered by Service](https://solutions.mccsemi.com/)
[Terms of Sale and Export](https://www.mccsemi.com/Home/TermsAndConditions) [Privacy Policy](https://www.mccsemi.com/Home/PrivacyPolicy)
[Version : 1.0](https://www.mccsemi.com/Version)
MCC is a manufacturer of high-quality discrete semiconductors to the consumer markets © MCC. All Rights Reserved · 2026
```json
{
"@context": "http:\/\/schema.org\/",
"datePublished": "2026-05-01T2:28:33 PM",
"dateModified": "2026-05-01T5:35:19 PM",
"headline": "MCC Introduces a 60V Dual N-Channel MOSFET Array for Compact Power Designs",
"description": "MCC introduces a 60V dual N-channel MOSFET array in a compact PDFN5060-8D package, delivering 8.5 mΩ RDS(on), 50A current capability, and efficient power switching for high-density designs.",
"mainEntityOfPage": {
"@type": "WebPage",
"@id": "https://solutions.mccsemi.com/news/mcc-introduces-a-60v-dual-n-channel-mosfet-array-for-compact-power-designs"
},
"author": {
"@type": "Person",
"name": "MCC",
"url": "https://solutions.mccsemi.com/news/author/mcc"
},
"publisher": {
"@type": "Organization",
"name": "Micro Commercial Components",
},
"image": {
"@type": "ImageObject",
"url": "https://22710435.fs1.hubspotusercontent-na1.net/hubfs/22710435/brand-assets/Logo/MCC-favicon.gif"
},
"name": "MCC Introduces a 60V Dual N-Channel MOSFET Array for Compact Power Designs"
}
```
```json
{
"@context" : "https://schema.org",
"@type" : "BlogPosting",
"author" : {
"@type" : "Person",
"name" : "MCC",
"url" : "https://solutions.mccsemi.com/news/author/mcc"
},
"dateModified" : "2026-05-01T17:35:19.819Z",
"datePublished" : "2026-05-01T14:28:33.000Z",
"headline" : "MCC Introduces a 60V Dual N-Channel MOSFET Array for Compact Power Designs",
"image" : [ "https://solutions.mccsemi.com/hubfs/MCC%20Introduces%20a%2060V%20Dual%20N-Channel%20MOSFET%20Array%20for%20Compact%20Power%20Designs%20%20%20%20-%20mcc%20semi%20-%20micro%20commercial%20components%20(1080x400)%20(3).png" ],
"mainEntityOfPage" : {
"@id" : "https://solutions.mccsemi.com/news/mcc-introduces-a-60v-dual-n-channel-mosfet-array-for-compact-power-designs",
"@type" : "WebPage"
},
"publisher" : {
"@type" : "Organization",
"logo" : {
"@type" : "ImageObject",
"url" : "https://solutions.mccsemi.com/hubfs/brand-assets/Logo/MCC%20Logo%201x.png"
},
"name" : "Micro Commercial Components"
}
}
```
