Ultra-Low RDS(on) down to 1.6 mΩ, 60 V, 300 A Performance in a Dual-Side Cooling PDFN5060-DSC-B Package

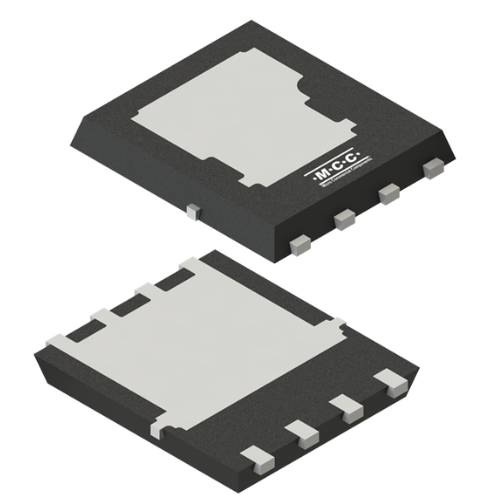

MCC introduces the MCACLS1D6N06YH , a 60 V N-channel power MOSFET designed to address common challenges in high-current power designs, including power loss, limited board space, and thermal management. Housed in a compact and thermally efficient PDFN5060-DSC-B package, this device supports high-density layouts while enabling improved heat dissipation.
With ultra-low RDS(on) down to 1.6 mΩ and support for continuous current up to 300 A, the MCACLS1D6N06YH enables efficient and reliable high-current switching. Advanced split-gate trench MOSFET technology enhances switching performance, while dual-side cooling improves thermal efficiency by enabling heat flow through both the top and bottom of the package. This makes the device well suited for space-constrained applications such as DC-DC converters, power distribution, motor control, and portable or industrial power systems.
Features & Benefits:
- N-channel power MOSFET for high-efficiency switching
- Ultra-low on-resistance: 1.6 mΩ (max) at VGS = 10 V
- 60 V drain-source rating for 12 V and 24 V systems
- High current capability up to 300 A
- Split-gate trench technology for reduced switching losses

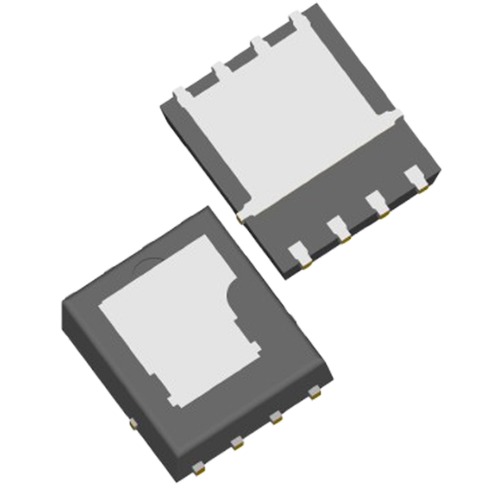

- PDFN5060-DSC-B package (5.0 mm × 6.0 mm) with dual-side cooling
- Optimized Thermal Performance with Dual-Side Cooling
Applications
|
|
|
|
|
|
Power Conversion
|
Energy Storage & Battery Systems
|
Power Distribution & Switching |
Motor Control & Industrial Power |
|
|
|
|
%20cabinet%20-%20mcc%20semi%20500x300.png?width=251&height=151&name=_industrial%20battery%20energy%20storage%20system%20(BESS)%20cabinet%20-%20mcc%20semi%20500x300.png)
Optimizing Thermal Performance with Dual-Side Cooling
Thermal management is a critical factor in high-current power design. The dual-side cooling architecture used in the PDFN5060-DSC-B package enables more efficient heat transfer compared to traditional single-sided packages, helping reduce junction temperature and improve long-term reliability.
To learn more about thermal design and cooling strategies:
- Why dual-side cooling is a game changer for electronics
- Thermal management: a guide to greater MOSFET performance and cooling
Product Attributes, Parametrics & Datasheet
|
Product |
Type |
Package |
Channel |
Number of Functions |
Drain-Source |
Gate-Source |
Drain |
Drain-Source |
Datasheet |
|
Power MOSFET |
PDFN5060-DSC-B |
N |
Single |
60 |
±20 |
300 |
0.00168 |
Now available, purchase directly from MCC or through our authorized distributors.
For technical inquiries or sample requests, contact MCC for support.
