Unmatched Efficiency and Reliability for Diverse High-Power Applications

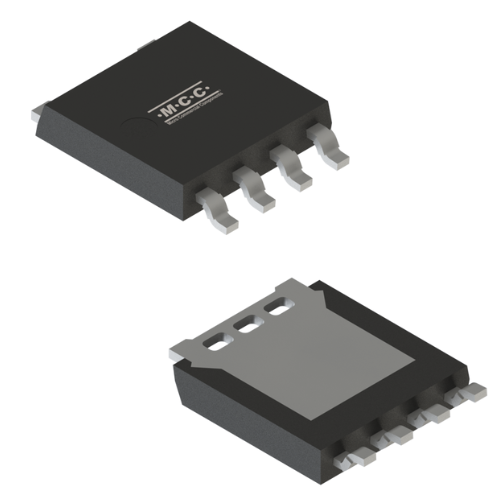

MCC Semi is proud to present the latest in our extensive MOSFET lineup. Housed in the versatile LFPAK56E package, the 40V MCACLF320N04Y is designed to address challenges associated with high-power applications.
Featuring RDS(on) of only 0.62mΩ, our new MOSFET reduces energy losses while enhancing system efficiency. Split-gate trench (SGT) technology and superior thermal performance add to its energy-saving capabilities, while stable operation at junction temperatures up to 175°C ensures reliability in extreme conditions.
An ideal solution for consumer and industrial applications, including motor drives, power tools, and DC-DC converters, MCACLF320N04Y provides exceptional performance to meet the demands of modern engineers and manufacturers.
Features & Benefits:
- SGT Technology: Advanced split-gate trench technology minimizes power loss and boosts overall performance.
- Low On-Resistance: An RDS(on) of only 0.62mΩ ensures minimal energy consumption and improved system efficiency.
- High Operating Junction Temperature: Delivers reliable operation at junction temperatures up to 175°C.
- Excellent Thermal Performance: Designed for demanding thermal environments, including high-power applications.
- Compact LFPAK56E Package: This innovative package provides a space-saving solution for diverse electronic designs and systems.
- Flexibility and Reliability: Well-suited for long-lasting performance in various applications, including lighting controls, heaters, battery management systems, motor drives, and DC-DC converters..
Applications
Engineered for efficiency and thermal reliability, MCC’s compact 40V MOSFET is optimal for high-power industrial and consumer applications, including:
|
|
|
|
Industrial |
Consumer |
|
|
Product Attributes, Parametrics & Datasheet
|
Product |
Type |
Package |
Drain-Source Voltage VDS |
Drain-Source On-Resistance RDS(ON) (max.) |
Mounting Type |
Datasheet |
|
N-Channel Power MOSFET |
LFPAK56E |
40V |
0.62mΩ |
Surface-Mount (SMD) |
Use the MCC chatbot to quickly request a sample or ask a question.
Want to ensure you specify the right MOSFET for the application? Explore our Essential Guide to 40V MOSFET Functions & Features.
