12 mΩ RDS(on) in a Thermally Optimized TO220AB(B) Package
High-voltage power stages often face efficiency losses and heat buildup that drive larger heatsinks and complicated designs. MCC addresses those challenges with the MCP012N20YH 200 V N-Channel MOSFET built on Split Gate Trench (SGT) technology and housed in a thermally optimized TO220AB(B) package. It offers a low 12 mΩ RDS(on) and fast switching to reduce conduction and switching losses, while its package and industry standard footprint enable reliable operation up to 175°C and streamlined drop-in integration.
The enhanced thermal path supports higher current handling with lower temperature rise, helping designers boost power density, meet efficiency targets, and improve system reliability across motor drives, DCDC converters, base station power amplifiers, and industrial power stages.

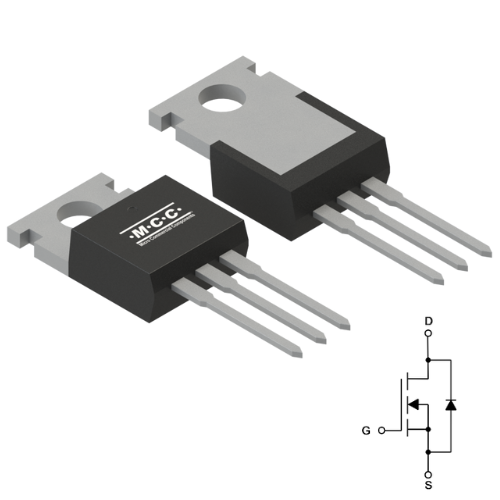

%20in%20a%20Thermally%20Optimized%20TO220AB(B)%20Package%20%20-%20MCP012N20YH-BP%20-%20mcc%20semi%20-%20micro%20commercial%20components%20500x500%20(1).png?width=500&height=500&name=12%20m%CE%A9%20RDS(on)%20in%20a%20Thermally%20Optimized%20TO220AB(B)%20Package%20%20-%20MCP012N20YH-BP%20-%20mcc%20semi%20-%20micro%20commercial%20components%20500x500%20(1).png)
Features & Benefits:
- Split Gate Trench (SGT) power MOSFET technology
- Low RDS(on): 12 mΩ (typ)
- High junction temperature: ≤175°C
- Fast switching characteristics
- Strong avalanche/robust SOA (application dependent)
- Low conduction losses for higher efficiency
- Industry standard TO220AB(B) footprint for easy design-in, with optimization for heat dissipation
Applications
The MCP012N20YH-BP’s combination of low RDS(on), fast switching, and a thermally optimized TO220AB(B) package makes it a strong fit for high-voltage, high reliability power stages. Its industry standard footprint and robust performance enable straightforward integration across a wide range of sectors and use cases.
|
|
|
|
|
|
