28mΩ On‑Resistance and 10A Drive Capability in a 2.0 × 2.0 mm DFN2020‑6LE Package

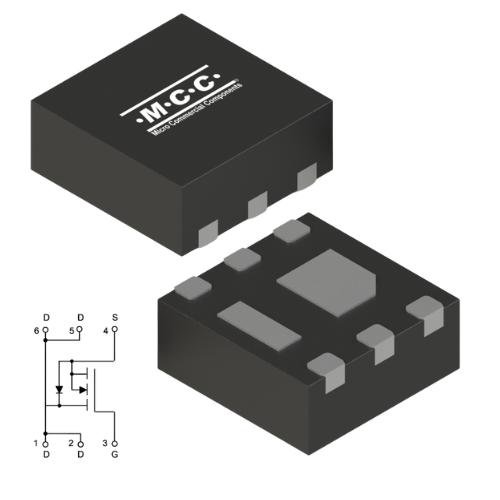

MCC introduces the MCM028N03YU, a high‑performance N‑Channel MOSFET developed for engineers designing power and signal switching circuits under tight space and thermal constraints. Packaged in a DFN2020‑6LE footprint of only 2.0 × 2.0 mm, it delivers low conduction loss, fast switching behavior, and robust current handling for densely populated commercial and consumer PCBs.
The device features a maximum RDS(on) of 28mΩ and supports up to 10A continuous drain current, reducing power dissipation while maintaining reliable operation on 5V and 12V rails. Split‑gate trench MOSFET technology enables efficient switching, and a low 0.7V gate threshold allows direct drive from microcontrollers and low‑voltage logic, simplifying gate drive design and minimizing external component requirements in high‑density layouts.
%20MCC%20semi%20Micro%20Commercial%20Components%20500x500.png?width=500&height=500&name=MCM028N03YU-TP%20Compact%2030V%20N%E2%80%90Channel%20MOSFET%20with%20Low%20RDS(on)%20MCC%20semi%20Micro%20Commercial%20Components%20500x500.png)
Features & Benefits:
- Ultra‑compact DFN2020‑6LE package with a footprint of 2.0 mm × 2.0 mm, ideal for high‑density and space‑constrained PCB designs
- Low RDS(on) of 28mΩ (max) at VGS = 10V for reduced conduction losses and improved system efficiency
- 30V drain‑source voltage (VDS) suitable for 5V and 12V power rails
- 10A continuous drain current capability for reliable load and signal switching
- Split‑Gate Trench MOSFET technology optimized for low on‑resistance and fast switching performance
- Low gate threshold voltage of 0.7V, enabling direct control from low‑voltage microcontrollers and logic circuits
Applications
 |
 |
 |
|
Portable Consumer Electronics |
Computing & Data Infrastructure |
Industrial & Embedded Systems |
|
|
|
Product Attributes, Parametrics & Datasheet
|
Product |
Type |
Package |
Numbers of functions |
Channel |
Drain-Source |
Gate-Source |
Drain |
RDS(ON) |
Datasheet |
|
Small Signal MOSFET |
DFN2020-6LE |
Single |
N |
30 |
±12 |
10 |
0.028 |
Now available, purchase directly from MCC or through our authorized distributors.
For technical inquiries or sample requests, contact MCC for support.
