High voltage and surge current handling in compact, interchangeable GBJ/PB packages.
MCC introduces the GBJ3516, GBJ5016, PB5008L, PB5016, and PB3516 bridge rectifiers—engineered to meet demanding power conversion requirements with high reliability and performance.

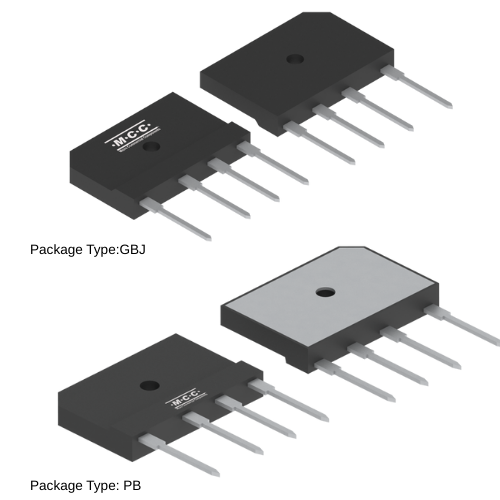

These rectifiers offer reverse voltage ratings (VRRM) of 800V or 1600V and can handle average forward current up to 35A or 50A. Available in both GBJ and PB packages, all variants share identical size and dimensions for easy interchangeability. The PB versions include an integrated heatsink plate for enhanced thermal management, providing installation flexibility without increasing device footprint.
These robust devices are ideal for AC-to-DC conversion in power supplies, industrial equipment, backup power systems, and renewable energy applications—where performance, reliability, and compact size are critical. With their combination of electrical strength, surge tolerance, and thermal efficiency, MCC’s GBJ and PB series bridge rectifiers provide a dependable solution for modern power electronics.
Features & Benefits:
- High reverse voltage capability (VRRM) of 800V or 1600V
- High surge forward current handling
- Average forward current ratings of 35A or 50A
- Glass-passivated chip junctions for improved reliability
- Available in GBJ and PB packages
- PB package includes an integrated heatsink plate for enhanced thermal management
- Compact package size: 28.8mm × 35.5mm × 4.8mm (W × L × H) for both GBJ and PB packages
Product Highlights
800V/1600V Bridge Rectifiers
1
Enhanced Reliability
Glass-passivated chip junctions ensure stable operation and long-term reliability even under high-voltage and high-stress conditions.
800V/1600V Bridge Rectifiers
2
High Power Handling
Average forward current ratings of 35A or 50A and strong surge current capability, able to handle power fluctuations without performance loss.
800V/1600V Bridge Rectifiers
3
Flexible Thermal Management
Integrated heatsink plate improves heat dissipation and allows for more efficient thermal management in high-power systems.
800V/1600V Bridge Rectifiers
4
Easy Integration
Supports straightforward installation, seamless replacement, and design upgrades with interchangeable GBJ/PB designs and a standardized package size (28.8mm × 35.5mm × 4.8mm).
Applications
These bridge rectifiers are versatile components designed to meet the needs of a wide range of power electronics applications. Their robust performance and thermal management features make them ideal for use across several industry sectors, including industrial, commercial, and renewable energy systems.
|
|
|
|
Industrial Automation |
Power Conversion |
Data Center & Server |
Consumer and Commercial Electronics |
|
|
|
|
Product Attributes, Parametrics & Datasheet
Product |
Type |
Package |
Working Peak Reverse Voltage VWRM |
Average Rectified Forward Current IF |
Mounting Type |
Datasheet |
Bridge Rectifier |
GBJ |
1600V |
35A |
Through Hole |
||
Bridge Rectifier |
GBJ |
1600V |
50A |
Through Hole |
||
Bridge Rectifier |
PB |
800V |
50A |
Through Hole |
||
Bridge Rectifier |
PB |
1600V |
50A |
Through Hole |
||
Bridge Rectifier |
PB |
1600V |
35A |
Through Hole |
