Low Loss, Low EMI, High Surge Capability in Rugged PB Package

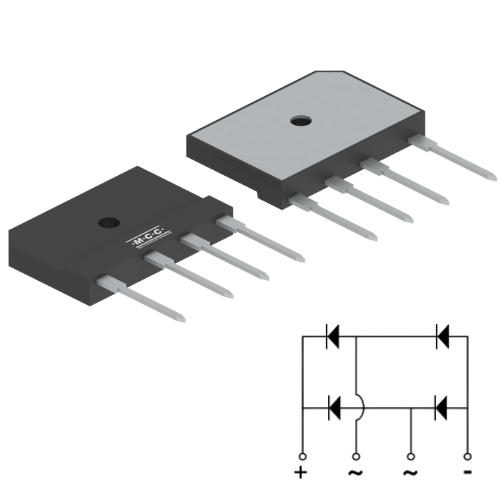

MCC introduces the EPB2506-BP, EPB3506-BP, and EPB5006-BP Super‑Fast Recovery Bridge Rectifiers—engineered for high-reliability, high-speed power conversion in a rugged and reliable PB package. These versatile bridge rectifiers feature a 600 V VRRM rating and a super‑fast 50 ns recovery to reduce switching losses and ringing, improving efficiency and thermal margins.

All three devices offer soft‑recovery behavior to minimize overshoot and EMI, along with high surge forward current capability to withstand inrush and load spikes for highly dependable operation. Glass‑passivated junctions ensure low leakage and stable blocking performance over extended temperature ranges and long lifespans.

With average forward current options of 25 A, 35 A, and 50 A, the EPB series supports compact layouts and simplifies design across SMPS, PFC front ends, motor drives, and DC‑DC converters.

Features & Benefits:
  • 600 V VRRM high reverse-voltage capability
  • Super-fast reverse recovery (typ. 50 ns) to reduce switching losses
  • High surge forward current handling for inrush and transient events
  • Soft-recovery characteristic to minimize ringing and EMI
  • Glass-passivated chip junction for stability and low leakage
  • PB package with compact footprint (package size: 28.6 mm × 28.6 mm × 6.8 mm, lead pitch 5.08 mm)

Product Highlights

Super‑Fast Recovery Bridge Rectifiers (600 V)

1

Enhanced Efficiency

Super‑fast 50 ns reverse recovery reduces switching losses and ringing, improving overall system efficiency.

Super‑Fast Recovery Bridge Rectifiers (600 V)

2

Robust Surge Handling

High surge forward current capability tolerates inrush and transient spikes, protecting components and boosting reliability.

Super‑Fast Recovery Bridge Rectifiers (600 V)

3

Lower EMI

Soft‑recovery behavior minimizes overshoot and noise, simplifying EMI filtering and easing compliance.

Super‑Fast Recovery Bridge Rectifiers (600 V)

4

Long‑Term Stability

Glass‑passivated junctions reduce leakage and enhance blocking integrity, ensuring consistent performance over time.

Applications

These super-fast recovery bridge rectifiers are well-suited for front-end AC rectification and high-speed switching stages where low loss, low EMI, and high surge capability are critical. Their 600 V VRRM rating, soft‑recovery behavior, and robust PB package make them a reliable fit across industrial, automotive, consumer, and infrastructure power systems.

motor drives - mcc semi - micro commercial components 500x300 appliance motor control - application - mcc semi - micro commercial components 500x300 HVAC controls - application commercial - mcc semi - micro commercial components

Industrial

Consumer Electronics

Commercial and Building

  • Motor drives and inverters
  • PLC power supplies
  • Industrial SMPS and auxiliary supplies
  • Battery chargers and forklift chargers
  • Welding equipment
  • TV and set‑top box power supplies
  • Appliance motor controllers (HVAC, refrigerators, washers)
  • HVAC drives and controls
  • Elevator and escalator controllers
  • Lighting power supplies




Product Attributes, Parametrics & Datasheet

Product

Type

Package Type

Number of Function

IF(AV)(A)

VRWM (V)

Datasheet

EPB2506-BP

Bridge Rectifier

TBSG

1-Phase Bridge

25

600

Info

EPB3506-BP

Bridge Rectifier

TBSG

1-Phase Bridge

35

600

Info

EPB5006-BP

Bridge Rectifier

TBSG

1-Phase Bridge

50

600

Info



Now available, purchase directly from MCC or through our authorized distributors.

For a deeper dive into rectifier diode applications and best practices, check out our Complete Engineer’s Guide to Types and Applications, your go-to resource for understanding rectifier diodes, their role in AC-to-DC conversion, and practical design insights.



For technical inquiries or sample requests, contact MCC for support.

Use the MCC chatbot to quickly request a sample or ask a question.
