Fast recovery, high surge capability, and compact surface-mount design for modern power systems

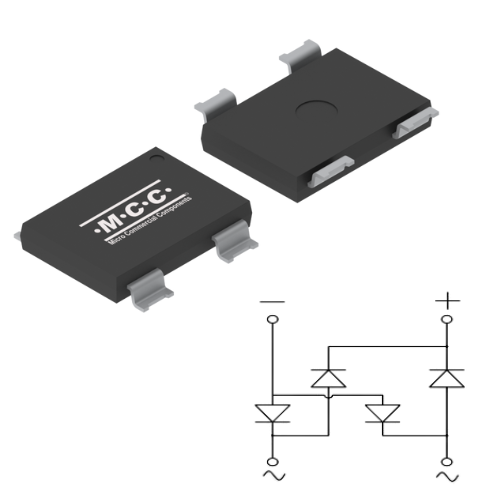

MCC is excited to announce its latest series of 1000V Fast Recovery Bridge Rectifiers in an SMT-compatible TBSG package, engineered for high-voltage rectification circuits where efficiency and space optimization are critical.
High-voltage designs often struggle with switching losses from slow recovery diodes, thermal buildup in compact layouts, and reliability under surge conditions, all while needing components suitable for automated SMT assembly.
This new series addresses these challenges with a fast reverse recovery time of less than 500 ns, significantly reducing switching losses and improving energy efficiency in demanding power applications. An optimized forward voltage (VF) of 1.3V and low thermal resistance enable superior current handling while maintaining thermal stability. The compact TBSG package supports automated placement and delivers excellent thermal performance, making it ideal for high-density power systems where size and performance matter most.
Available in 2A, 3A, 4A, and 6A current ratings, these rectifiers provide robust high-voltage rectification in space-constrained designs. From switch-mode power supplies and PFC circuits to motor drivers, DC-DC converters, LED drivers, battery management systems, and USB-PD fast chargers, MCC’s 1000V Fast Recovery Bridge Rectifiers offer designers a versatile, efficient, and durable solution for next-generation power conversion.
Features & Benefits:
- Glass-Passivated Chip Junction: Enhances thermal stability and long-term reliability, even in harsh conditions.
- Fast Reverse Recovery Time (<500ns): Minimizes switching losses and boosts efficiency in high-frequency power conversion applications.
- High Surge Forward Current Capability: Provides robust protection against power surges, ensuring durability and performance in transient-heavy environments.
- SMT-Compatible TBSG Package: Optimized for automated placement, saving board space while improving thermal performance.
Product Highlights
1000V 1-Phase Bridge Rectifiers
1
1000V Peak Reverse Voltage (VRRM)
Built to thrive in demanding, high-voltage environments and ensure consistent, reliable operation.
1000V 1-Phase Bridge Rectifiers
2
Fast Recovery Time (<500ns)
Reduce switching losses, boost energy efficiency, and enable high-speed performance in modern power systems.
1000V 1-Phase Bridge Rectifiers
3
High Surge Current Capability
With surge current ratings from 150A to 300A, the RTBSA series delivers robust transient protection, safeguarding against power spikes and providing long-term durability.
1000V 1-Phase Bridge Rectifiers
4
Glass-Passivated Chip Junctions
Offer superior thermal stability and enhanced reliability, making these devices ideal for mission-critical applications.
Applications
These rectifiers are designed to deliver reliable performance across a wide range of power systems. Their versatility makes them an excellent fit for multiple verticals, from power conversion to industrial automation and consumer electronics.
![]() |
![]() |
Industrial & Automation |
Consumer Electronics |
|
|
Product Attributes, Parametrics & Datasheet
Product |
Type |
Package |
IF(AV)(A) |
VRWM (V) |
Datasheet |
1-Phase Bridge Rectifier |
TBSG |
2 |
1000 |
||
1-Phase Bridge Rectifier |
TBSG |
3 |
1000 |
||
1-Phase Bridge Rectifier |
TBSG |
4 |
1000 |
||
1-Phase Bridge Rectifier |
TBSG |
6 |
1000 |
Now available, purchase directly from MCC or through our authorized distributors.
For a deeper dive into rectifier diode applications and best practices, check out our Complete Engineer’s Guide to Types and Applications, your go-to resource for understanding rectifier diodes, their role in AC-to-DC conversion, and practical design insights.
For technical inquiries or sample requests, contact MCC for support.
Use the MCC website chatbot to quickly request a sample or ask a question.
