Optimized for ultra-fast 50 ns recovery, robust surge performance, and low EMI in high-frequency power applications

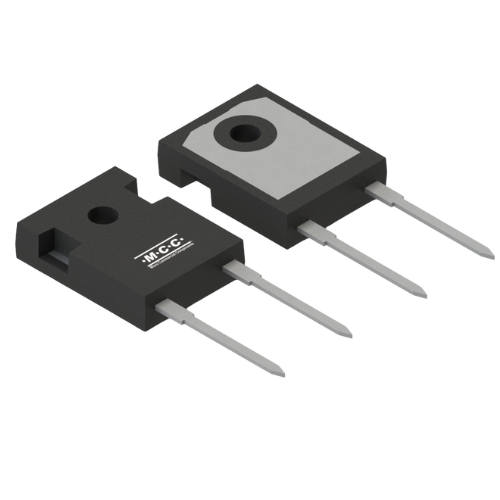

MCC introduces the ultra fast rectifiers 650V, available in both 40A (MUR4065B-BP) and 60A (MUR6065BL-BP) TO-247AD packages. Designed for high-speed switching applications, these rectifiers feature ultra-fast reverse recovery (as low as 50 ns) to deliver superior efficiency and minimize energy loss, even in demanding operating conditions. Robust surge-forward-current capability and soft recovery characteristics ensure reliable, low-EMI performance, making them an excellent choice for applications requiring stable, high-performance rectification and fast response.
Built on a robust planar structure die, these rectifiers provide consistent performance and long-term reliability in challenging thermal and electrical environments. Their ability to operate at high frequencies enables more compact and efficient designs, while the high operating junction temperature rating of ≤175°C ensures stable operation under elevated heat conditions. With excellent surge forward current handling, the devices can withstand demanding transient events, making them suitable for a wide range of power conversion and protection roles. The soft recovery characteristic further minimizes power-consuming oscillations and EMI, supporting clean and stable system performance.
Features & Benefits:
- Ultra-fast reverse recovery time (max. 50 ns) for high efficiency
- High surge forward current capability for robust transient performance
- Planar structure die for consistent and reliable operation
- Soft recovery characteristics minimize oscillations and electromagnetic interference
- High operating junction temperature ≤175°C
- Repetitive peak reverse voltage: 650V
- Suitable for high frequency operation
- TO-247AD package size
Product Highlights
Ultra Fast Rectifiers 650V 40A/60A
1
Increased System Efficiency
Ultra-fast reverse recovery time reduces switching losses, resulting in higher overall energy efficiency for power conversion systems.
Ultra Fast Rectifiers 650V 40A/60A
2
Reliable Performance Under Stress
High surge forward current capability and elevated junction temperature tolerance ensure dependable operation during power surges and in high-temperature environments.
Ultra Fast Rectifiers 650V 40A/60A
3
Compact and Flexible Design
The TO-247AD package allows for easy integration into space-constrained designs while maintaining excellent thermal performance.
Ultra Fast Rectifiers 650V 40A/60A
4
Reduced Electromagnetic Interference (EMI)
Soft recovery characteristics help minimize EMI and oscillations, supporting stable and noise-free system operation.
Applications
|
|
|
|
Energy Storage and Backup |
Power Conversion |
Industrial and Motor Control |
Renewable Energy |
|
|
|
|
Product Attributes, Parametrics & Datasheet
Product |
Type |
Package |
Voltage – DC Reverse (VR) Max |
Current – Average Rectified |
Mounting Type |
Datasheet |
Super-Fast Recover Rectifiers |
650 V |
40A |
Through Hole |
|||
Super-Fast Recovery Rectifiers |
650 V |
60A |
Through Hole |
