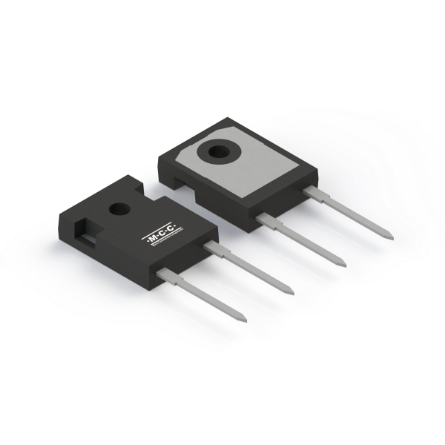

MURZ3065P-BP and MURZ6065P-BP 650V Superfast Recovery Rectifiers Featuring Soft Recovery, Low Forward Voltage, and Rugged TO-247AD Packaging
Micro Commercial Components (MCC) introduces the MURZ3065P-BP and MURZ6065P-BP, a family of 650V Superfast Recovery Rectifiers designed to improve efficiency, switching performance, and reliability in demanding high-frequency power conversion systems. As switching frequencies continue to increase across industrial, renewable energy, and automotive power electronics, engineers require rectifiers that minimize reverse recovery losses while maintaining excellent thermal performance and robust surge capability.
The MURZ Series addresses these challenges by combining 650V reverse voltage capability with 30A and 60A average forward current ratings in the rugged TO-247AD package. Featuring superfast reverse recovery times of 95ns and 105ns, low forward voltage (typ) of only 1.29V and 1.28V, soft recovery with low reverse recovery charge (Qrr), and Near Zero Temperature Coefficient (ZTC) characteristics, these rectifiers improve switching efficiency while reducing electromagnetic interference (EMI). High surge current capability of up to 400A and 220A, together with planar structure die technology further enhances system reliability, making the series ideal for power factor correction (PFC), UPS systems, industrial power supplies, EV charging equipment, welding systems, and inverter applications.
650V Superfast Recovery Rectifiers
Features & Benefits:
- 650V Reverse Voltage Rating: Provides reliable high-voltage rectification for demanding industrial and power conversion applications.
- Superfast Reverse Recovery: Reverse recovery times of 95ns and 105ns minimize switching losses and improve efficiency in high-frequency converters.
- Low Forward Voltage: Typical forward voltage of 1.28V and 1.29V reduces conduction losses and improves overall power conversion efficiency.
- Soft Recovery Performance: Low reverse recovery charge (Qrr) reduces EMI while improving switching behavior in high-frequency applications.
- 30A and 60A Current Ratings: Offers flexible current handling for a wide range of power system designs.
- High Surge Current Capability: IFSM up to 220A and 400A provides excellent robustness against transient overload conditions.
- Planar Structure Die Technology: Enhances device reliability and manufacturing consistency.
- Near Zero Temperature Coefficient (ZTC): Maintains stable forward voltage and switching characteristics across a wide operating temperature range, simplifying thermal management.
- TO-247AD Package: Rugged package provides excellent thermal dissipation and simplified heatsink mounting for high-power systems.
- RoHS Compliant: Supports environmentally responsible electronic product development.
Applications
The MURZ Series Superfast Recovery Rectifiers are designed for high-frequency switching applications requiring low switching losses, excellent thermal performance, and reliable long-term operation. Their fast recovery characteristics and rugged construction make them well suited for industrial, renewable energy, and power conversion systems.
|
|
|
|
|
Industrial Power Systems
|
Renewable Energy
|
Power Conversion |
|
|
|
%20for%20efficient%20power%20conversion%20mcc%20semi%20micro%20commercial%20components%20700x500.png?width=260&height=186&name=Industrial%20Switched-mode%20power%20supplies%20(SMPS)%20for%20efficient%20power%20conversion%20mcc%20semi%20micro%20commercial%20components%20700x500.png)
Product Attributes, Parametrics & Datasheet
|
Product |
Type |
Package |
VRRM (V) |
IF(AV) (A) |
IFSM (A) |
TRR (max) (ns) |
VF [Typ] (V) |
Datasheet |
| MURZ3065P-BP |
TO-247AD |
650 |
30 |
220 |
95 |
1.29 |
||
| MURZ6065P-BP | TO-247AD |
650 |
60 |
400 |
105 |
1.28 |
Now available, purchase directly from MCC or through our authorized distributors.
For technical inquiries or sample requests, contact MCC for support.
