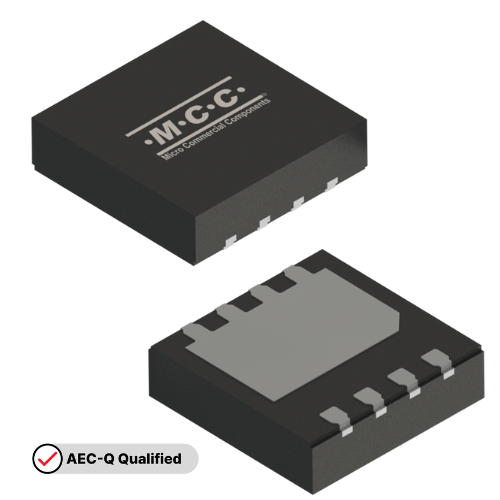

Low Conduction Losses in Compact DFN3333-8(SWF) Package
Demanding applications have met their match in MCC’s new 100V N-channel MOSFET. Engineered for high performance, MCGWF011N10YLHE3 boasts AEC-Q101 qualification for safety and reliability in critical automotive systems.
This component effortlessly manages heat and power losses, providing efficient performance thanks to an impressive on-resistance of 11mΩ and advanced thermal management.
Unwavering performance is assured in operating junction temperatures up to 175°C — perfect for battery management systems, motor drivers, power supplies, and lighting controls.
A low gate charge ensures rapid switching, taking efficiency even further during power conversion processes. Saving space without compromise, the low-profile MCGWF011N10YLHE3 in the DFN3333-8(SWF) package meets the demands of modern electronics with efficiency and performance.
%20Package%20-%20MCC%20semi%20Micro%20Commercial%20Components%20500x500%20(1).png?width=500&height=500&name=MCGWF011N10YLHE3%20100V%20Auto-Grade%20N-Channel%20MOSFET%20-%20%20DFN3333-8(SWF)%20Package%20-%20MCC%20semi%20Micro%20Commercial%20Components%20500x500%20(1).png)
Features & Benefits:
- AEC-Q101 Qualified: Ensures compliance with stringent automotive industry standards for safety and reliability.
- Low On-Resistance: Reduces energy loss during operation with on-resistance of 11mΩ.
- Low Conduction Losses: Minimizes energy waste for improved overall system efficiency.
- High Operating Junction Temperature: Offers robust performance at operating junction temperatures of up to 175℃.
- Low Gate Charge (QG): Enhances system efficiencies at both low and high loads, optimizing performance across a range of applications.
- Low-Profile DFN3333-8(SWF) Package: Provides a compact solution for designs where space is limited.
- Side-Wettable Flanks: Improve quality by enabling reliable automated optical inspection (AOI) capabilities.
Applications
MCC’s auto-grade MOSFET is ready to provide optimal performance in a diverse range of automotive, industrial, and consumer electronics applications, including:
|
|
|
|
|
Automotive |
Industrial |
Consumer Electronics |
|
|
|
Product Attributes, Parametrics & Datasheet
|
Product |
Type |
Package |
Drain-Source |
Drain-Source |
Mounting Type |
Datasheet |
|
N-Channel MOSFET |
DFN3333-8(SWF) |
100V |
11mΩ |
Surface-Mount (SMD) |
For technical inquiries or sample requests, contact MCC for support.
