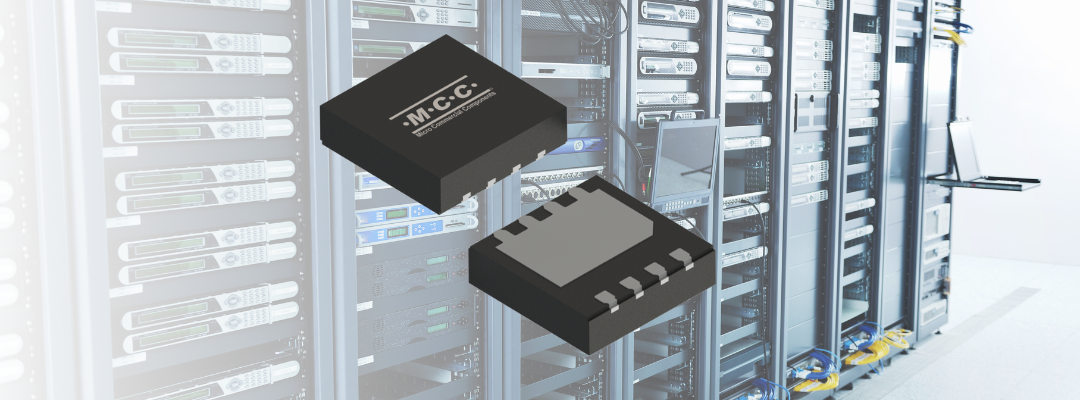

Superior Performance in DFN5060 and DPAK Packages
MCC Semi is proud to roll out four new components in our advanced P-channel MOSFET lineup. Supporting -100V applications from battery protection to motor drives and high-side switches, MCAC085P10, MCAC055P10, MCU055P10, and MCU085P10 are made for reliability in challenging environments.
With a maximum on-resistance of 55mΩ or 85mΩ, our MOSFETs improve overall system efficiency while reducing power dissipation. Leveraging trench technology and superior thermal performance, these versatile solutions provide engineers with high power density in a compact DFN5060 or DPAK package.
Our P-channel MOSFETs are the obvious choice for unmatched performance and effective power management.
%20DFN5060%20DPAK%20mcc%20semi%20-%20micro%20commercial%20components.png?width=500&height=500&name=100V%20P-channel%20MOSFETs%20with%20Low%20RDS(on)%20DFN5060%20DPAK%20mcc%20semi%20-%20micro%20commercial%20components.png)
Features & Benefits:
- Trench MOSFET Technology: Enhances current capacity and reduces on-resistance
- Low On-Resistance: A maximum RDS(on) of 55mΩ or 85mΩ minimizes power consumption and boosts efficiency
- Low Conduction Losses: Reduce heat generation while improving overall system operation
- Excellent Thermal Performance: Safeguards device from overheating during use in high-temp scenarios
- High Power Density: Available in compact DFN5060 and DPAK package options
Applications
These 100V P-channel MOSFETs deliver robust performance, energy efficiency, and compact size, making them well-suited for a range of applications.
|
|
|
|
|
Power Management |
Industrial Automation |
Lighting Solutions |
|
|
|
Product Attributes, Parametrics & Datasheets
|
Product |
Type |
Package |
Drain-Source Voltage |
Drain-Source On- |
Mounting Type |
Datasheet |
|
P-Channel Power MOSFET |
DFN5060 |
-100V |
85Ω |
Surface-Mount (SMD) |
||
|
P-Channel Power MOSFET |
DFN5060 |
-100V |
55Ω |
Surface-mount (SMD) |
||
|
P-Channel Power MOSFET |
DPAK (TO-252) |
-100V |
55Ω |
Surface-mount (SMD) |
||
|
P-Channel Power MOSFET |
DPAK (TO-252) |
-100V |
85Ω |
Surface-mount (SMD) |
Contact us to request a sample or ask a question.
