Integrated Complementary Switching in a Compact DFN3333-D Package

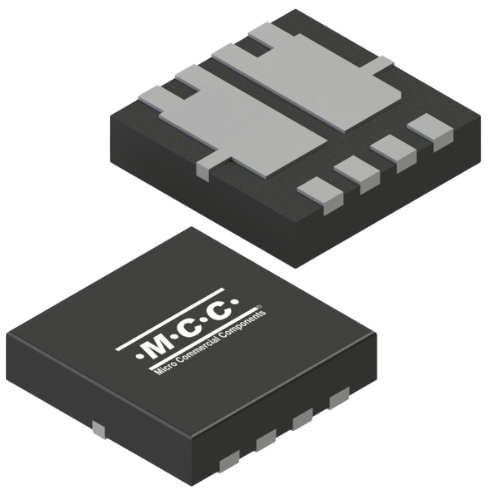

MCC introduces the MCGD115NP10L, a 100V dual N- and P-channel MOSFET in a compact DFN3333-D package, designed for space-constrained power systems that require efficient switching and simplified circuit design.
By integrating complementary N- and P-channel MOSFETs into a single device, this solution reduces component count and streamlines power stage layout while maintaining strong electrical performance. The integration is particularly effective in high-side and low-side switching configurations, where discrete MOSFET solutions increase footprint and routing complexity.
With a maximum N-channel RDS(on) of 115mΩ at VGS = 10V and up to 10A current capability, the device supports efficient switching and stable operation in applications such as DC-DC converters, load switches, motor drivers, and fast power control across consumer and industrial systems.
Built on Trench Power LV MOSFET technology, the device enables low conduction loss and reliable operation in high-density PCB layouts, supporting compact and thermally efficient system design.
Features & Benefits:
- Dual N‑ and P‑channel MOSFET array enables complementary switching in a single compact device
- Trench Power LV MOSFET technology
- 100V drain‑source voltage (VDS) supports higher voltage power rails
- Low N‑channel RDS(on) of 115mΩ (max) at VGS = 10V
- Up to 10A current capability
- Integrated design reduces component count and simplifies PCB layout
- Compact DFN3333‑D package enables high‑density board designs
- Side wettable flanks improve AOI inspection reliability and assembly quality
- Strong thermal performance for stable operation in high-power designs
Applications
|
|
|
|
|
|
Consumer Electronics
|
Industrial Systems
|
Embedded & Compact Systems |
General Power Control |
|
|
|
|
Product Attributes, Parametrics & Datasheet
|
Product |
Type |
Package |
Channel |
Number of Functions |
Drain-Source |
Gate-Source |
Drain |
Drain-Source |
Datasheet |
|
Power MOSFET |
DFN3333-D |
N+P |
Dual |
100/-10 |
±20 |
10/-5.5 |
0.115/0.325 |
Now available, purchase directly from MCC or through our authorized distributors.
For technical inquiries or sample requests, contact MCC for support.
