Efficient, Compact Design with Improved Thermal and Electrical Conductivity

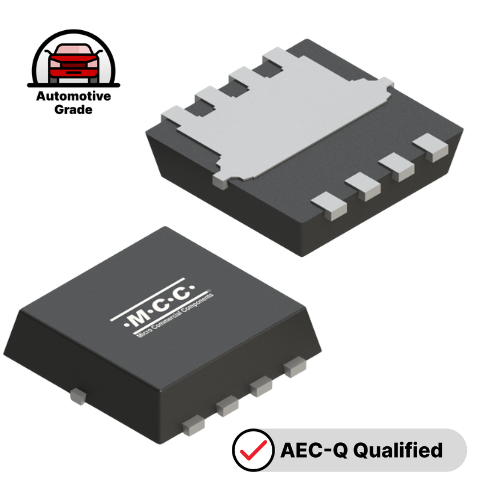

MCC introduces its latest 60V MCG080N06LHE3 N-Channel MOSFET in the compact PDFN3333-B package. Designed for low-to-medium power applications, this device features an on-resistance of just 80mΩ and a larger drain pad that improves both electrical and thermal conductivity. The result is better heat dissipation and higher overall efficiency, especially in space-constrained environments.

Built with MCC’s trench MV technology and high-density cell design, the MOSFET provides consistent and reliable switching performance. Its AEC-Q101 qualification ensures durability and dependable operation in automotive and other high-reliability applications.

This compact, high-performance solution is well suited for engineers seeking a balance of efficiency, thermal management, and space-saving design.

Features & Benefits:
  • AEC-Q101 Qualified: Ensures reliability in automotive and harsh environments.
  • Trench MV Technology: Supports high efficiency and performance.
  • Low On-Resistance: RDS(on) of 80mΩ reduces conduction losses.
  • Larger Drain Pad: Improves thermal conductivity and electrical performance.
  • Compact Package: PDFN3333-B (3.3mm x 3.3mm) enables space-saving layouts.

Product Highlights

This 60V N-Channel MOSFET combines efficiency, compactness, and thermal strength in one streamlined package.

Compact 60V N-Channel MOSFET

1

Improved Efficiency

An RDS(on) of 80mΩ lowers power losses and improves energy use in system designs.

Compact 60V N-Channel MOSFET

2

Enhanced Thermal Management

The expanded drain pad helps disperse heat more effectively, supporting reliable high-current operation.

Compact 60V N-Channel MOSFET

3

Space-Saving Design

The small footprint of the PDFN3333-B package makes it easy to integrate into compact systems.

Compact 60V N-Channel MOSFET

4

Automotive-Grade Reliability

With AEC-Q101 qualification, this device is ready for the demands of automotive and other mission-critical applications.

Applications

This MOSFET offers flexible performance for a wide range of industries and use cases.

lighting car - automotive - 500x300

solenoid application example - mcc semi - micro commercial components 500x300

LED signage - mcc applications - mcc semi - 500x300

Automotive

Industrial

Consumer Electronics

  •  LED lighting

  • LEV traction inverters

  • Solenoid control

  • Solenoid and relay drivers

  • Motor control systems

  • LED strips

  • Signage and display systems



Product Attributes, Parametrics & Datasheet

Product

Type

Package

Drain-Source
Voltage
VDS

Drain-Source
On-Resistance
(max.)RDS(on)

Mounting Type

Datasheet

MCG080N06LHE3

N-Channel Power MOSFET

PDFN3333-B

60V

80mΩ

Surface-Mount (SMD)

Info



Contact MCC to request a sample or ask a question.



For a deeper dive into MOSFET applications and design considerations, get our essential guide.
