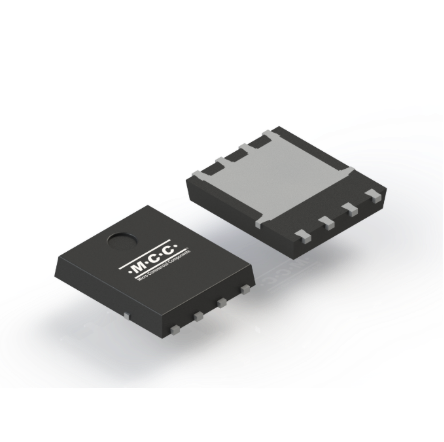

MCC introduces the MCACL1D6N06YH, a 60V N-Channel Power MOSFET designed to address the dual challenges of high-current switching and thermal management in space-constrained industrial power systems. Packaged in a compact PDFN5060, the device combines ultra-low on-resistance with exceptional thermal performance to support efficient, high-density power conversion in demanding applications. Advanced Split Gate Trench technology enables both low conduction losses and effective switching performance in a thermally enhanced surface-mount package.

The MCACL1D6N06YH delivers a maximum RDS(on) of 1.6mΩ, minimizing power dissipation during high-current operation. With continuous drain current capability up to 242A, the device supports robust industrial motor drives, DC/DC converters, and power-distribution systems. The ultra-low junction-to-case thermal resistance of 0.81°C/W, combined with the PDFN5060's exposed pad design, provides efficient heat transfer for high-power applications in industrial automation, telecom power systems, BLDC motor drives, server power supplies, and robotics.
