Low RDS(on), Low Gate Charge, and Enhanced AOI Accuracy for High-Efficiency Power Switching
MCC introduces the MCG062N15Y, a 150V N-Channel MOSFET engineered for high-efficiency switching in compact, space-constrained designs. This device utilizes advanced Split Gate Trench (SGT) technology and a high-density cell structure to deliver low RDS(on) and low gate charge, reducing conduction and switching losses for greater energy efficiency.

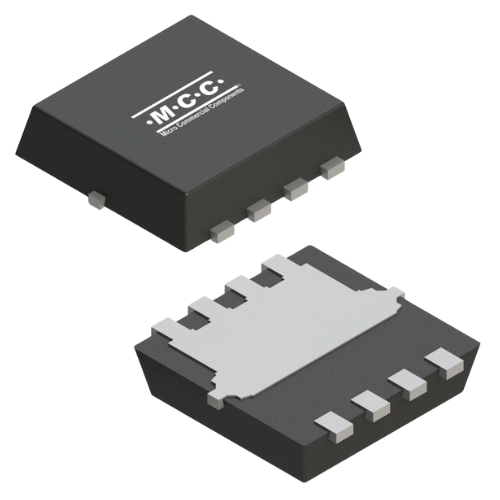

The MCG062N15Y is housed in a thermally optimized PDFN3333 package, offering improved heat dissipation and reliable performance in demanding power environments. Its enhanced package design supports high-precision Automated Optical Inspection (AOI), helping reduce both defect escape rates and false calls, which are key to improving manufacturing yield and system reliability.
Ideal for power supplies, motor drives, load switches, MPPT controllers, inverters, and automation systems, the MCG062N15Y gives designers a dependable path to smaller, more efficient, and more accurate power solutions.
Features & Benefits:
- Split Gate Trench (SGT) Technology: Boosts switching efficiency and thermal performance.
- High-Density Cell Design: Achieves low RDS(on), minimizing conduction losses.
- Low Gate Charge: Reduces switching losses for high-efficiency operation.
- AOI-Optimized Package: Improves inspection accuracy and manufacturing yield.
- Compact PDFN3333 Package: Saves board space and enhances thermal management
Applications
Engineered for efficient power switching and control, the MCG062N15Y delivers reliable performance in a compact footprint. Its robust design supports a wide range of applications, including industrial systems, renewable energy solutions, consumer electronics, and general power management.
|
|
|
|
|
|
Industrial Automation |
Renewable Energy |
Consumer and Commercial Electronics |
General Purpose Power Management |
|
|
|
|
Product Attributes, Parametrics & Datasheet
|
Product |
Type |
Package |
Drain-Source |
Drain-Source |
Mounting Type |
Datasheet |
|
N-Channel Power MOSFET |
DFN3333-8(SWF) |
60V |
5.5mΩ |
Surface-Mount (SMD) |
Contact MCC to request a sample or ask a question.
