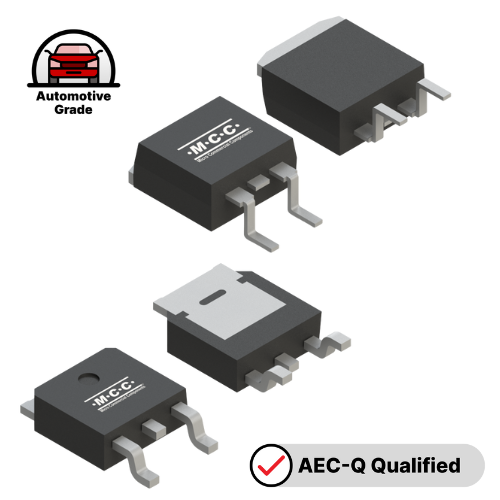

High‑Current, High‑Efficiency Performance in DPAK and D2PAK Packages
MCC introduces a new automotive‑qualified Schottky Barrier Rectifier (SBR) series that expands its rectifier portfolio with high‑performance solutions in compact DPAK and D2PAK packages. Designed to support demanding automotive power architectures, these devices combine low forward voltage, high current handling, and stable operation at elevated temperatures to address the challenges of efficiency and reliability in vehicle power systems.
The SBR series spans 10 A to 60 A with voltage ratings from 45 V to 100 V, enabling broad use across automotive power conversion and protection functions. AEC‑Q101 qualification, low power loss, and a maximum junction temperature of 175 °C ensure dependable long‑term performance under harsh conditions, helping designers reduce thermal stress, improve system efficiency, and simplify implementation in automotive and EV applications.
Automotive‑qualified Schottky Barrier Rectifier
Features & Benefits:
- AEC‑Q101 qualified for automotive reliability and quality requirements
- High current capability for demanding power applications
- High efficiency with low forward voltage to minimize power losses
- Maximum junction temperature of 175 °C for high-temperature operation
- Available in compact DPAK package (approx. 6.5 mm × 6.1 mm)
- Available in high-thermal-performance D2PAK package (approx. 10.4 mm × 9.2 mm)
Applications
These automotive Schottky Barrier Rectifiers are well suited for a wide range of vehicle systems that require efficient high‑current rectification and reliable operation under harsh conditions. Their robust electrical and thermal performance makes them ideal for both conventional automotive electronics and electrified power systems.
 |
 |
.png?width=259&height=155&name=Water%20pump%20car%20automotive%20%20MCC%20semi%20micro%20commercial%20components%20(500%20x%20300%20px).png) |
 |
|
Interior & Exterior Automotive Lighting |
Electric Vehicle (EV) Power Systems |
Automotive Thermal & Fluid Management |
Vehicle Power Distribution |
|
|
|
|
Product Attributes, Parametrics & Datasheet
|
Product |
Type |
Package |
Numbers of functions |
Configuration |
IF(AV)(A) |
VRWM (V) |
VF |
IR (uA) [max] @ |
Datasheet |
|
Schottky Barrier Rectifier |
DPAK
|
Dual |
Common Cathode |
20 |
100 |
0.85 |
10 |
||
|
Schottky Barrier Rectifier |
DPAK |
Dual |
Common Cathode |
10 |
100 |
0.8 |
10 |
||
|
Schottky Barrier Rectifier |
D2PAK
|
Dual |
Common Cathode |
40 |
60 |
0.73 |
100 |
||
|
Schottky Barrier Rectifier |
D2PAK |
Dual |
Common Cathode |
40 |
100 |
0.85 |
10 |
||
|
Schottky Barrier Rectifier |
D2PAK |
Dual |
Common Cathode |
60 |
45 |
0.75 |
50 |
Now available, purchase directly from MCC or through our authorized distributors.
For a deeper dive into rectifier diode types, selection, and real-world applications, check out our comprehensive engineer’s guide.
For technical inquiries or sample requests, contact MCC for support.
