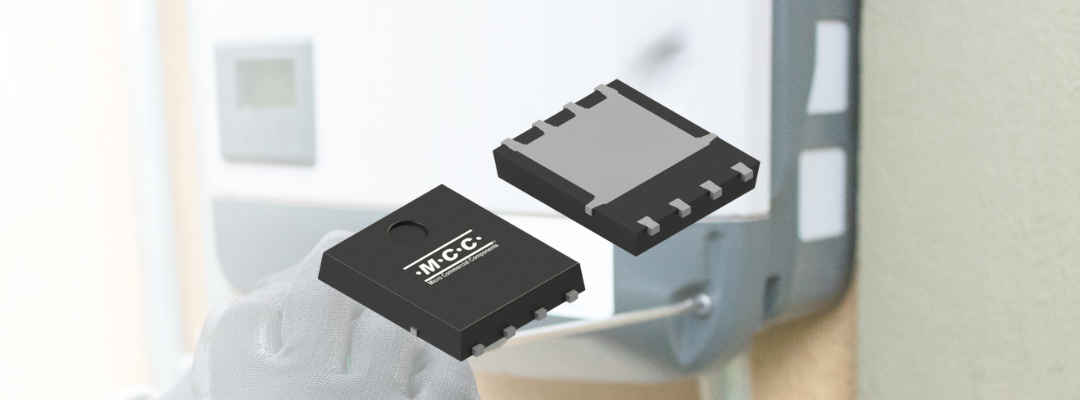

Low Gate Charge Meets Low RDS(on) in DFN5060 Package
Meet MCC’s advanced logic level MOSFET made to enable high-speed switching with efficiency and consistency. The 40V MCACLD85N04YL features an impressively low on-resistance of 85mΩ and a typical gate charge of only 21nC to reduce conduction losses and enhance switching.
Capable of withstanding operating junction temperatures of up to 175°C, this component ensures reliable operation in challenging environments.
SGT technology minimizes conduction and switching losses, solving common power management issues in a small DFN5060 package.
With a long list of high-performance features, MCACLD85N04YL is suitable for diverse applications across industrial, consumer, and renewable energy industries.
Features & Benefits:
- SGT Technology: Split-gate trench design enhances overall performance
- Low On-Resistance: RDS(on) of only 85mΩ enhances efficiency
- Low Conduction Losses: Provide higher efficiency while reducing heat dissipation
- High Operating Junction Temperature: Delivers reliable performance in harsh conditions, with operation junction temps up to 175°C
- Low Gate Charge: A gate charge of 21nC facilitates faster switching speeds
Applications
Perfect for high-power and high-switching applications, MCACLD85N04YL is an intelligent solution for tackling the diverse challenges of modern electronics applications.
|
|
|
|
|
Industrial |
Consumer |
Renewable Energy |
|
|
|
Product Attributes, Parametrics & Datasheets
|
Product |
Type |
Package |
Drain-Source Voltage |
Drain-Source On- |
Mounting Type |
Datasheet |
|
N-Channel Power MOSFET |
DFN5060 |
40V |
85mΩ |
Surface-Mount (SMD) |
Contact us to request a sample or ask a question.
