40V & 60V N-Channel Options in a Compact DFN5060 Package

Introducing the latest auto-grade innovations from MCC Semi — four remarkable N-channel power MOSFETs with up to 2.5mΩ on-resistance: MCACL220N06YHE3, MCACL2D5N06YL, MCACL280N04YHE3, and MCACL330N04YHE3.

Optimized for high current output, these powerful components boast RDS(on) as low as 0.8mΩ in a sleek, engineer-friendly DFN5060 package.

Enhance power management and ramp up efficiency with minimal losses and the confidence that come along with AEC-Q101 qualification and the MCC name.

With high power density, our new 40V and 60V MOSFETs are designed to handle harsh conditions and operating junction temps up to 175℃ with ease, making them ideal for diverse automotive and industrial applications — from battery management systems and electric power steering to lighting controls, water pumps, and solar power systems.

Count on MCC to continuously offer advanced solutions with unquestionable quality and performance.

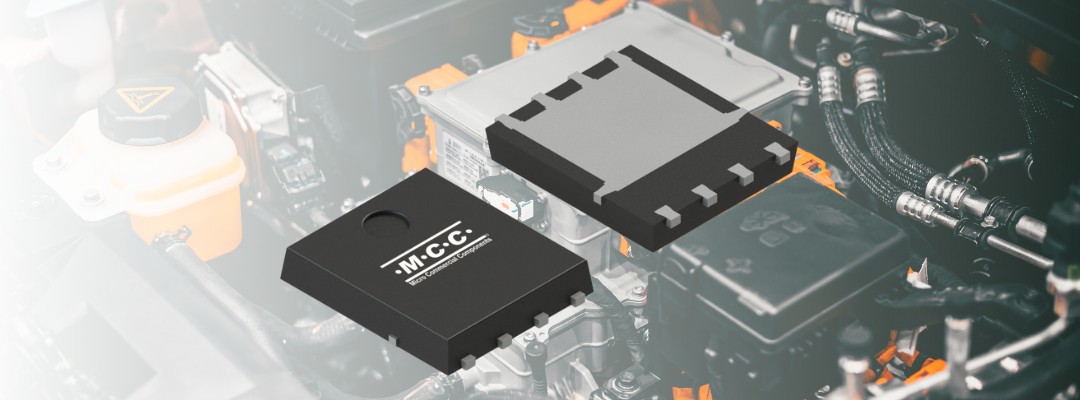

Power MOSFETs, MCACL220N06YHE3, MCACL2D5N06YL, MCACL280N04YHE3, and MCACL330N04YHE3. MCC semi micro commercial components (1)

40V & 60V N-Channel - Compact DFN5060 Package

Features & Benefits:
  • AEC-Q101 qualified for reliability
  • Advanced split-gate trench (SGT) technology
  • Excellent thermal performance & efficiency
  • Low RDS(on) minimizes power losses
  • High power density packagey
  • High junction temperature up to 175℃
  • Compact DFN5060 package saves space and material costs

Product Highlights

MCC’s latest 40V and 60V N-channel power MOSFETs were engineered for excellence in a range of working environments. Take advantage of ultra-low on-resistance with ultra-high assurance and versatility.

40V & 60V Auto-Grade Low RDS(on) MOSFETs


Enhanced Efficiency

Maximize energy efficiency and minimize power losses with RDS(on) as low as 0.8mΩ and exceptional thermal performance.

40V & 60V Auto-Grade Low RDS(on) MOSFETs



Ensure reliable operation in demanding conditions and high junction temperatures up to 175℃ thanks to AEC-Q101 qualification and robust design.

40V & 60V Auto-Grade Low RDS(on) MOSFETs


Space Optimization

The compact DFN5060 package with high power density allows for high current output in a minimal footprint, enabling space-efficient system integration while reducing overall costs.

40V & 60V Auto-Grade Low RDS(on) MOSFETs


Versatile Applications

These MOSFETs deliver features and performance that make them well-suited for a variety of automotive, industrial, and renewable energy applications with diverse power management needs.


Our collection of new auto-grade power MOSFETs brings the efficiency and robust performance required for mission-critical applications in diverse market segments:

Automotive Applications  AEC-Q101 Body electronics - MCC - Micro commercial components


Industrial machinery and equipment micro commercial component mcc semi (500 x 300 px)


renewable energy solar wind MCC
Automotive Industrial Renewable Energy
  • Battery management systems
  • Electric power steering
  • Seat controls
  • Lighting controls
  • Electric water pumps
  • Motor drives
  • DC-DC converters
  • Uninterruptible power supplies (UPS)
  • Solar power systems



Product Attributes, Parametrics & Datasheets




Drain-Source Voltage VDS


Drain-Source On-Resistance RDSON (Max @VGS=10V)

Mounting Type



N-Channel MOSFET

DFN5060 60V 1.6 Surface Mount Info

N-Channel MOSFET

DFN5060 60V 2.5 Surface Mount Info

N-Channel MOSFET

DFN5060 40V 0.8 Surface Mount Info

N-Channel MOSFET

DFN5060 40V 1.0 Surface Mount Info


Use the MCC website chatbot to quickly request a sample or ask a question.
