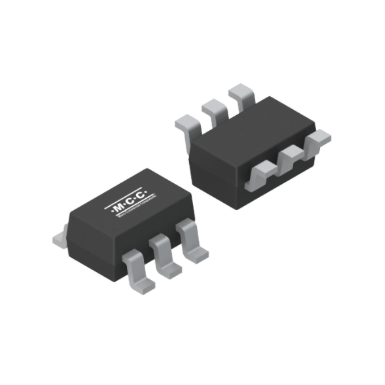

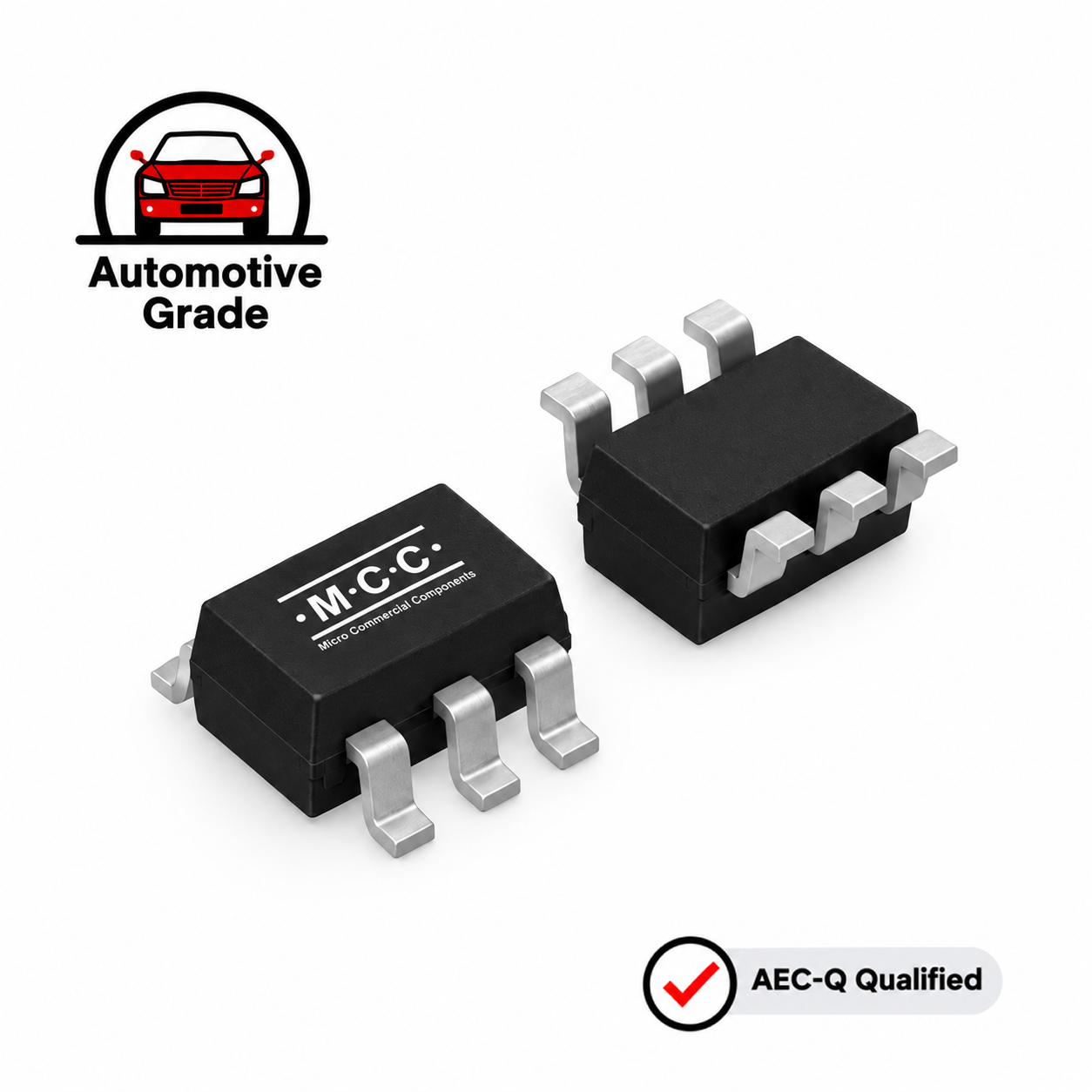

MCC's UMH15NHE3 AEC-Q101 qualified dual NPN digital transistor integrates built-in bias resistors in a compact SOT-363 package
Micro Commercial Components (MCC) expands its AEC-Q101 qualified Digital Transistor Series with the introduction of the UMH15NHE3-TP, a 50V dual NPN digital transistor featuring integrated bias resistors in a compact SOT-363 package. As the latest addition to MCC's automotive-qualified digital transistor portfolio, the UMH15NHE3-TP helps designers simplify switching and inverter circuit designs by eliminating the need for external input resistors, reducing component count, PCB footprint, and overall BOM cost.
Designed for high-reliability applications, the UMH15NHE3-TP combines 50V supply voltage, 100mA output current capability, and AEC-Q101 qualification to deliver dependable performance in automotive electronics, industrial control systems, and consumer devices requiring compact signal switching solutions.
50V Dual NPN Digital Transistor
Features & Benefits:
- Dual NPN Digital Transistor: Integrates two NPN transistor circuits in a single package for compact switching and interface designs.
- Built-In Bias Resistors: Eliminates external input resistors, simplifying inverter and switching circuit design.
- 50V Supply Voltage: Supports a broad range of low-voltage switching applications.
- 100mA Output Current: Enables reliable signal switching and low-power load driving.
- AEC-Q101 Qualified: Supports automotive applications.
- Compact SOT-363 Package: Reduces PCB footprint and enables higher component density in space-constrained designs.
- Reduced Component Count: Integrated functionality helps reduce external components.
Applications
|
|
|
|
Automotive Electronics
|
Industrial & Embedded Systems
|
|
|
|
|
|
|
Consumer Electronics
|
Signal Switching & Interface Circuits
|
|
|
Product Attributes, Parametrics & Datasheet
|
Product |
Type |
Package | Number of Functions | Supply Voltage VCC (V) |
Maximum Output Current IO (mA) | Input Resistance in KΩ R1/R2 |
Datasheet |
| UMH15NHE3 | SOT-363 | Dual (R1/R2) |
50 |
100 |
4.7/4.7 |
The UMH15NHE3-TP is available from Micro Commercial Components (MCC). For product availability, samples, technical information, and datasheet details, contact MCC or an authorized distributor.
Looking for more AEC-Q101 qualified digital transistor solutions? Explore MCC’s Digital Transistor Series to discover additional device options designed to simplify automotive circuit designs and support reliable switching performance.
For technical inquiries or sample requests, contact MCC for support.
