AEC-Q101 Qualified 60V Automotive P-Channel MOSFET Featuring Low RDS(on), Compact DFN2020-6(SWF) Packaging, and Reliable High-Side Switching Performance

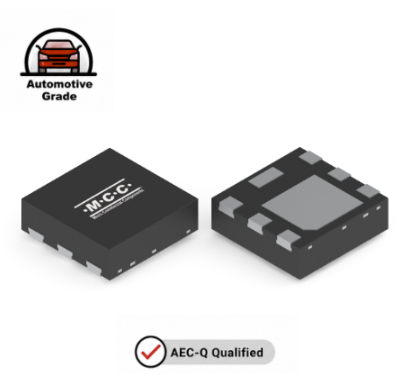

Micro Commercial Components (MCC) introduces the MCMWF190P06LQ-TP, an AEC-Q101 qualified 60V P-Channel MOSFET designed for reliable automotive high-side switching and power management applications. As automotive electronic modules continue to become smaller and more integrated, engineers require compact MOSFET solutions that deliver efficient power switching, excellent thermal performance, and long-term reliability under demanding operating conditions.
The MCMWF190P06LQ-TP addresses these requirements by combining a low maximum RDS(on) of 190mΩ with a continuous drain current capability of up to 5.7A in a compact DFN2020-6(SWF) package. Built on advanced Trench MV MOSFET technology, the device offers efficient switching performance while its side-wettable flank (SWF) package improves automated optical inspection (AOI) capability and assembly reliability. These characteristics make it an excellent solution for reverse battery protection, high-side load switches, body control modules, battery management systems, automotive lighting, motor control, and DC-DC converter applications.
60V Automotive P-Channel MOSFET
Features & Benefits:
- AEC-Q101 Qualified: Qualified to automotive standards for reliable operation under demanding electrical, thermal, and mechanical conditions
- Low RDS(on): Maximum 190mΩ at VGS = -10V minimizes conduction losses and improves overall power efficiency
- Trench MV MOSFET Technology: Optimizes switching performance while maintaining low conduction losses
- 60V VDS Rating: Provides sufficient voltage margin for 12V automotive systems with transient voltage spikes
- Continuous Drain Current: Supports up to 5.7A for automotive power switching and protection circuits
- Compact DFN2020-6(SWF) Package: Small 2mm × 2mm footprint enables high PCB density in compact electronic modules
- Side-Wettable Flanks (SWF): Improves automated optical inspection (AOI) capability and enhances solder joint reliability
- Low Thermal Resistance: Junction-to-case thermal resistance of 11.5°C/W supports efficient heat dissipation
- RoHS Compliant: Supports environmentally responsible product development
Applications
|
|
|
|
|
Automotive
|
Energy & Power Management
|
Industrial Systems
|
|
|
|
|
|
|
|
Power Conversion
|
Motor Control
|
|
|
%20for%20efficient%20power%20conversion%20mcc%20semi%20micro%20commercial%20components%20700x500.png?width=250&height=179&name=Industrial%20Switched-mode%20power%20supplies%20(SMPS)%20for%20efficient%20power%20conversion%20mcc%20semi%20micro%20commercial%20components%20700x500.png)
Product Attributes, Parametrics & Datasheet
|
Product |
Type |
Package | Channel | Drain-Source Voltage VDS (V) |
Gate-Source Voltage VGS (V) |
Drain-Source On-Resistance RDS(ON) Max @VGS=10V (Ω) |
Datasheet |
| MCMWF190P06LQ-TP | DFN2020-6(SWF) |
P |
-60 |
±20 |
0.19 |
Now available, purchase directly from MCC or through our authorized distributors.
For technical inquiries or sample requests, contact MCC for support.
