Compact Snapback Design with Ultra-Low Clamping Voltage

Introducing MCC’s new super-low capacitance 3.3V and 5V ESD diodes designed with snapback technology and a high-power transient voltage suppressor (TVS).

With clamping voltage of just 5V and 13A (8/20µs) surge handling capability, ESDSBSLC3V3LT and ESDSBSLC5V0LT are engineered to provide the highest levels of protection and reliability.

Boasting capacitance of only 1.0pF or 0.65pF (typ), these diodes shield sensitive dual signal lines from harmful voltage spikes and electrostatic discharge.

Both components meet stringent IEC-6100-4-2 standards with outstanding immunity ratings of ±30kV for both air and contact discharge and strong lightning protection (IEC 61000-4-5), guaranteeing robust performance in harsh conditions.

From industrial equipment and communication systems to consumer electronics, MCC’s super-low capacitance dual line ESD diodes deliver confidence and stability in diverse applications.

Features & Benefits:
  • Snapback Design: Enables enhanced performance and protection
  • Ultra-Low Clamping Voltage: 5V clamping voltage delivers maximum circuit protection
  • Super-Low Capacitance: Exceptional capacitance of 1.0pF/0.65pF (typ) maintains digital signal integrity
  • IEC 61000-4-2 (ESD) Immunity Test:Assures reliable operation during extreme conditions:
    • Air Discharge: ±30kV
    • Contact Discharge: ±30kV
  • IEC 61000-4-5 (Lightning) Rating: Provides robust protection during lightning strikes up to 13A (8/20µs)

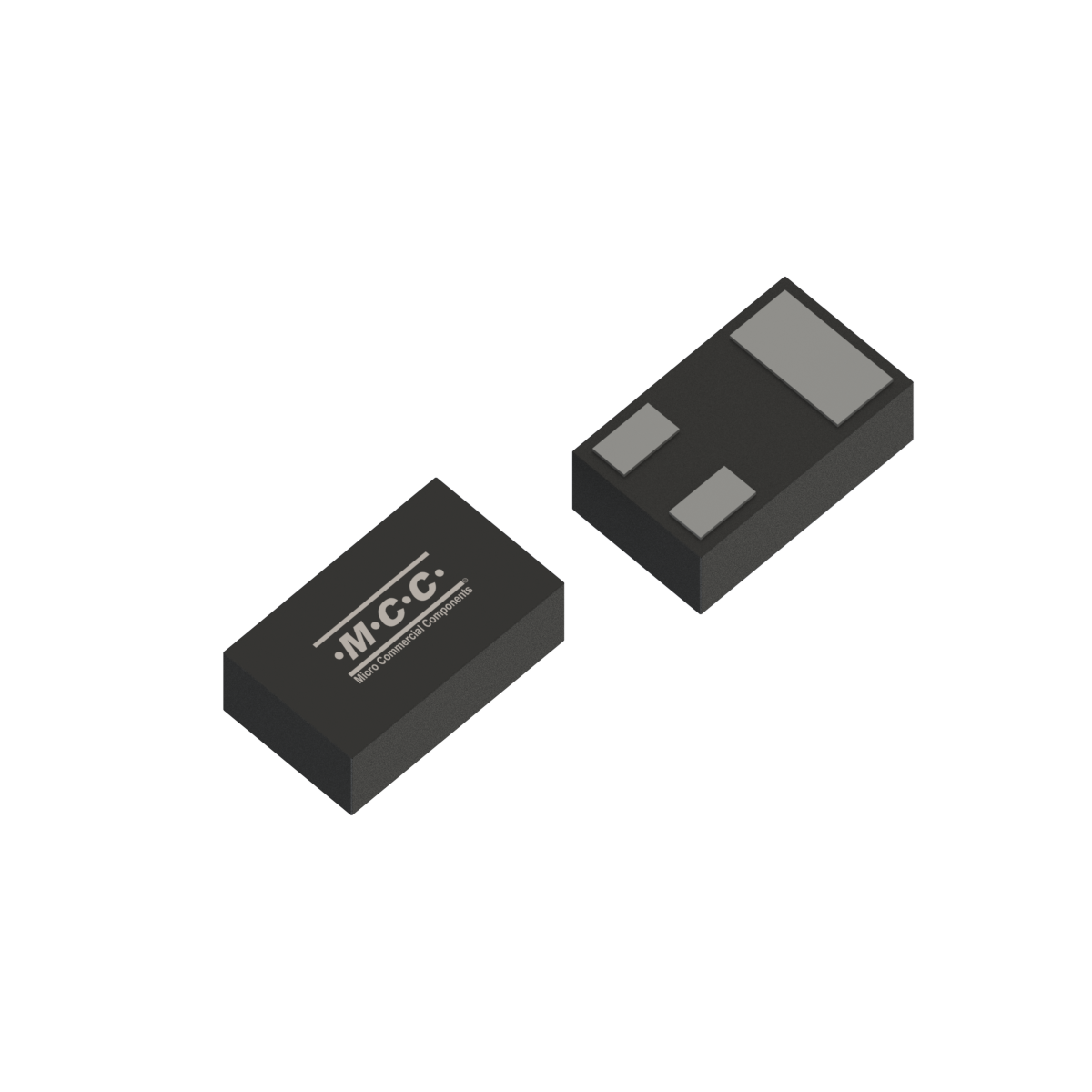

  • Compact Package: Low-profile DFN1006-3B package increases design flexibility

Product highlights

Safeguard electronic systems with our super-low capacitance ESD diodes for performance you’ll never have to question. These components are optimal for protecting circuits in small design spaces without compromise.

Superior Dual Line Protection:3.3V/5V Super-Low Capacitance ESD Diodes

1

Enhanced Protection

Our ESD diodes feature a low clamping voltage and high surge capability, effectively shielding electronic components from voltage spikes and electrostatic discharge events.

Superior Dual Line Protection:3.3V/5V Super-Low Capacitance ESD Diodes

2

Minimal Signal Distortion

With a low capacitance of only 1.0pF or 0.65pF, MCC’s ESD diodes maintain signal integrity, making them ideal for Ethernet and USB connections and other high-speed data applications.

Superior Dual Line Protection:3.3V/5V Super-Low Capacitance ESD Diodes

3

Space-Saving Design

Measuring only 1.0x0.6mm, their small DFN1006-3B package is perfect for space-constrained designs, enabling efficient use of board real estate while providing robust protection.

Superior Dual Line Protection:3.3V/5V Super-Low Capacitance ESD Diodes

4

Reliable Performance

Meeting stringent IEC 61000-4-2 and IEC 61000-4-5 standards, our diodes offer proven immunity against ESD and lightning strikes, ensuring long-term reliability across various applications.

Applications

With impressive protection and versatility, MCC’s super-low capacitance dual line ESD diodes are the obvious solution for a wide range of high-speed data and mission-critical applications.

motor drive industrial - mcc semi - micro commercial components 500x300

networking equipment - application - mcc semi - micro commercial components 500x300

usb4 high speed data transfer - mcc semi - micro commercial components 500x300

Industrial

Communications

Consumer Electronics

  • Industrial equipment
  • Automation systems
  • Robotics
  • 10/100/1000 Ethernet applications
  • Fiber optic equipment
  • Telecommunications equipment
  • USB 2.0 devices
  • Smartphones and tablets
  • Home appliances



Product Attributes, Parametrics & Datasheets

Product

Type

Package

Reverse Standoff Voltage VRWM

Junction Capacitance
CJ

Max
Clamping Voltage
VC

Mounting Type

Datasheet

ESDSBSLC3V3LT

ESD Protection Device

DFN1006-3B

3.3V

1pF

5V

Surface-Mount (SMD)

Info

ESDSBSLC5V0LT

ESD Protection Device

DFN1006-3B

5V

0.5pF

5V

Surface-Mount (SMD

Info


Contact us to request a sample or ask a question.

For insights on protecting components from ESD and transient voltage, check out our comprehensive TVS guide.
