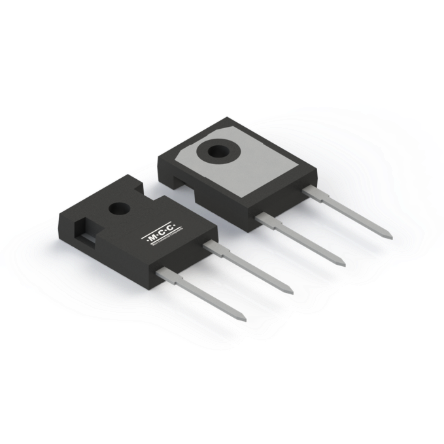

150V-250V Options Deliver Robust Performance in TO-247 Package
MCC is pleased to introduce our MBRxxPT series high-power Schottky barrier rectifiers. Engineered to solve energy loss, heat generation, and other design challenges found in high-power applications, these components boast ultimate reliability for diverse electronic needs.
Options from 150V to 250V, current capabilities of 80A to 100A, and a low forward voltage drop ensure our Schottky barrier rectifiers provide unmatched performance, even in the most challenging situations. Their low leakage current of just 10µA further enhances efficiency while reducing operational costs and maximizing system performance.
Excellent thermal performance and durability are assured thanks to their high operating junction temperature capability of up to 175°C and TO-247 package.
From power supplies and inverters to renewable energy and industrial applications, the MBRxxPT series is a versatile solution for superior operation and cost-effectiveness.
Features & Benefits:
- High operating junction temperature capability up to 175°C for robust performance
- High-current capability from 80A to 100A ideal for tough applications
- Low leakage current of 10µA boosts efficiency
- Low forward voltage drop minimizes power losses
Applications
Engineered for excellence in a broad range of electronics, our Schottky barrier rectifiers deliver uncompromising performance for various applications, including:
|
|
|
|
|
|
Industrial Applications |
Renewable Energy |
Data Centers & Telecommunications |
Consumer Electronics |
|
|
|
|
Product Attributes, Parametrics & Datasheets
Contact MCC to request a sample or ask a question.
