Low Forward Voltage, High Current Capability, and Robust TO-247 Packaging for Reliable High-Power Designs
Micro Commercial Components (MCC) introduces the MBR60200PTHS-BP, a high-performance 200V 60A Schottky Barrier Rectifier designed to deliver efficient and reliable power rectification for high-current power conversion systems. As modern power electronics continue to demand higher efficiency and improved thermal performance, designers require rectifier solutions that minimize conduction losses while maintaining reliable operation under heavy load conditions.

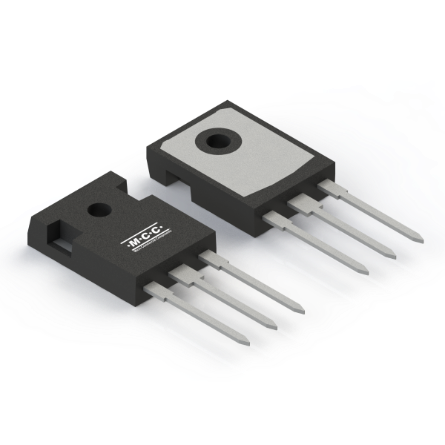

The MBR60200PTHS-BP addresses these requirements by combining a high average forward current capability of 60A with a low forward voltage drop of only 0.95V in a robust TO-247 through-hole package. Utilizing advanced Schottky Barrier Rectifier technology, the device offers fast switching performance, low reverse leakage current, and excellent thermal characteristics, making it an ideal solution for switching power supplies, DC-DC converters, battery charging systems, industrial power supplies, telecom equipment, and renewable energy applications.
200V Schottky Barrier Rectifier
Features & Benefits:
- High Current Capability: Supports average forward current up to 60A for demanding high-power applications.
- Low Forward Voltage: Maximum VF of only 0.95V reduces conduction losses and improves system efficiency.
- Fast Switching Performance: Low junction capacitance (490pF) minimizes switching losses in high-frequency power conversion.
- Low Reverse Leakage Current: Typical IR of only 10µA improves efficiency and reduces standby power consumption.
- High Junction Temperature: Supports operation up to 175°C for enhanced reliability in harsh environments.
- TO-247 Package: Excellent thermal performance enables efficient heat dissipation and reliable high-power operation.
- 200V Reverse Voltage: Suitable for industrial, telecom, renewable energy, and power conversion systems.
Applications
|
|
|
|
|
Industrial Power Systems
|
Power Conversion
|
Renewable Energy
|
|
|
|
|
|
|
|
Telecom & Networking
|
Consumer Electronics
|
|
|
.png?width=247&height=154&name=consumer%20electronics%20MCC%20micro%20commercial%20Components%20(1).png)
Product Attributes, Parametrics & Datasheet
|
Product |
Type |
Package |
Number of Functions |
Configuration |
IF(AV)(A) |
VRWM (V) |
VF [max]@IF (V) |
IR [max] @ |
Datasheet |
| MBR60200PTHS-BP |
Dual |
Common Cathode |
60 |
200 |
0.95 |
10 |
Now available, purchase directly from MCC or through our authorized distributors.
For a deeper dive into rectifier diode types, selection, and real-world applications, check out our Comprehensive Engineer’s Guide on Rectifier Diodes.
For technical inquiries or sample requests, contact MCC for support.
