Fast Recovery Diodes (FRED)

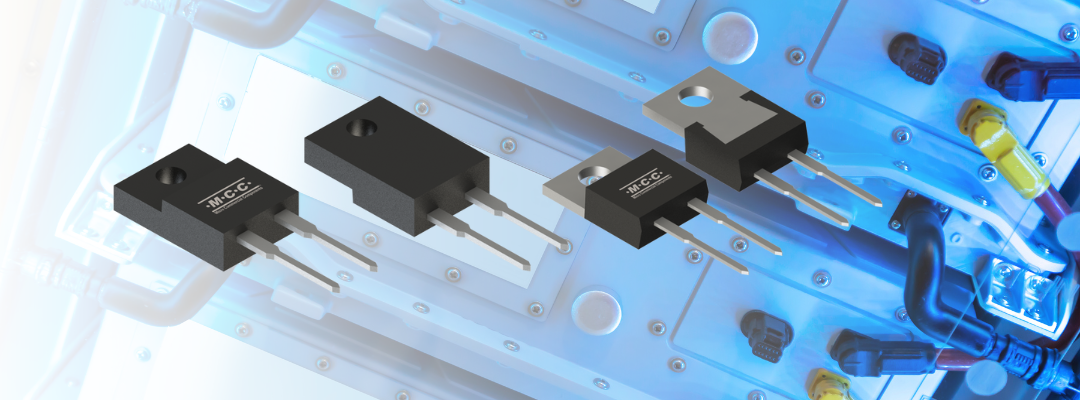

200 / 600 / 1200v Types with 8A ... 60A • TO-220/-F, T0-247, and D2PAK
Micro Commercial Components extends their fast switching diodes portfolio with types providing ultra-short reverse recovery time (trr) by appropriate switching characteristics.
 |
Key Features:
|
| Product | Configuration | Package | IF (A) | VRW (V) | VF (V) | IR (μA) | TRR (μs) |
| MUR30120B | Single | TO-247AD | 30 | 1200 | 2.4 | 10 | 0.075 |
| MUR3060B | Single | TO-247AD | 30 | 600 | 2.3 | 10 | 0.035 |
| MUR60120B | Single | TO-247AD | 60 | 1200 | 3.3 | 15 | 0.085 |
| MUR6060B | Single | TO-247AD | 60 | 600 | 1.7 | 10 | 0.075 |
| MURS1560A | Single | TO-220AC | 15 | 600 | 1.6 | 5 | 0.035 |
| MURS1560FA | Single | ITO-220AC | 15 | 600 | 1.6 | 5 | 0.035 |
| MURS1620CTA | Dual | TO-110AB | 16 | 200 | 1.0 | 5.0 | 0.035 |
| MURS1620FCTA | Dual | ITO-220AB | 16 | 200 | 1.0 | 5.0 | 0.035 |
| MURS1660CTA | Dual | TO-220AB | 16 | 600 | 1.6 | 5.0 | 0.035 |
| MURS1660FCTA | Dual | ITO-220AB | 16 | 600 | 1.6 | 5.0 | 0.035 |
| MURS820A | Single | TO-220AC | 8.0 | 200 | 1.0 | 5.0 | 0.035 |
| MURS820FA | Single | ITO-220AC | 8.0 | 200 | 1.0 | 5.0 | 0.035 |
| MURS860A | Single | TO-220AC | 8.0 | 600 | 1.6 | 5.0 | 0.035 |
| MURS860FA | Single | ITO-220AC | 8.0 | 600 | 1.6 | 5.0 | 0.035 |
| MURS860FA | Single | D2-PAK | 15 | 200 | 1.02 | 10 | 0.035 |
| MURSB1560 | Single | D2-PAK | 15 | 600 | 1.55 | 10 | 0.04 |
| MURSB1620CTA | Dual | D2-PAK | 16 | 200 | 1.0 | 5.0 | 0.035 |
| MURSB1660CRA | Dual | D2-PAK | 16 | 600 | 1.6 | 5.0 | 0.035 |
| MURSD820A | Single | DPAK | 8.0 | 200 | 1.0 | 5.0 | 0.035 |
| MURSD860A | Single | DPAK | 8.0 | 600 | 1.6 | 5.0 | 0.035 |
