Leverage Ultra-Fast and Soft Recovery with Rugged Reliability

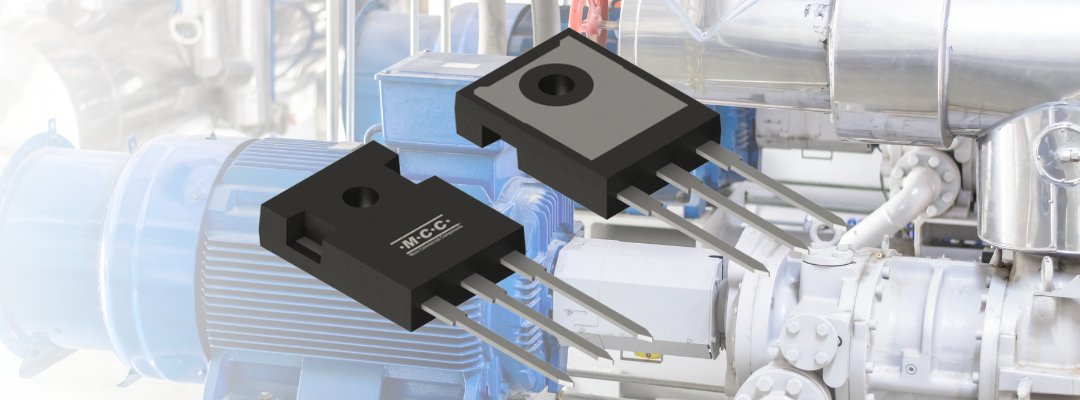

We’re proud to announce our two-in-one IGBT module, MIF400R065C2TL-BP. Available in the C2 package, this new cutting-edge module combines dual IGBT devices and sets the standard for rugged performance.

With 650V capability and an ultra-fast and soft recovery anti-parallel rectifier, this module delivers exceptional reliability in high-power applications.

MCC’s IGBT module is a no-brainer for motor controls, uninterruptible power supplies, welding equipment, and other power-intensive applications, thanks to its ability to withstand junction temperatures up to 175°C and a high short-circuit capability of 6us.

Designed with low VCE(sat), IGBT trench technology, and a 400A current rating, this component ensures low switching losses and low inductance while maximizing efficiency.

Our latest product offering is one of the many ways MCC Semi is here to deliver the specifications you need with the performance you demand.

Features & Benefits:
  • Low VCE(sat) with positive temperature coefficient
  • Trench IGBT technology
  • Low switching losses
  • High short-circuit capability (6us)
  • Ultra-fast and soft recovery anti-parallel forward diode (FWD)
  • Low inductance
  • Maximum junction temperature of 175°C
  • C2 package

Product Highlights

This new 650V IGBT module boasts a long list of features that add up to maximum reliability and performance.

650V IGBT Module


Enhanced Performance

Our low VCE(sat) IGBT combined with an ultra-fast rectifier ensures optimal performance and efficient power conversion for diverse applications.

650V IGBT Module


Reliable Operation

High short-circuit capability and a positive temperature coefficient simplify thermal management while guaranteeing uninterrupted operation.

650V IGBT Module


Improved Efficiency

To enhance efficiency, our IGBT minimizes switching losses and inductance during power transfer.

650V IGBT Module


Durability and Longevity

With a maximum junction temperature of  175°C, this module withstands harsh environments to deliver reliability for the long haul.


Our new IGBT module is the ideal solution for high-power applications that demand durability and efficiency, including:

industrial motors control mcc semi micro commercial components 700x500


UPS battery system mcc semi micro commercial components


Renewable Energy Systems -  mcc semi micro commercial components 700x500


_welding and plasma cutting -  mcc semi micro commercial components 700x500


Motor Controls

Uninterruptible Power Supplies (UPS)

Renewable Energy Systems

Welding and Plasma Cutting

  • Industrial motor drives
  • HVAC systems
  • Data centers
  • Telecommunication systems
  • Emergency power backup
  • Solar inverters
  • Wind turbine converters
  • Energy storage systems (ESS)
  • Welding machines
  • Plasma cutting equipment


Product Attributes, Parametrics & Datasheet




Voltage Class Max. (V)

Continuous Collector Current @ 100° Max.(IC)


MIF400R065C2TL-BP IGBT Module C2 650V 400A Info
