MCC's MCAC130N04Y Split Gate Trench technology delivers ultra-low on-resistance, high switching performance, and 130A current handling

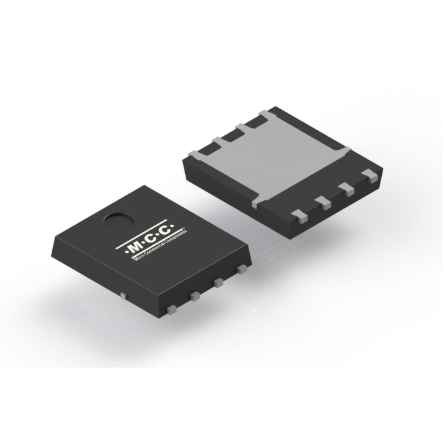

MCC introduces the MCAC130N04Y, a high-performance 40V N-Channel Power MOSFET designed to address the growing demand for efficient, high-current power conversion in space-constrained applications. The device features advanced Split Gate Trench MOSFET technology in a thermally enhanced PDFN5060 package, delivering exceptional electrical and thermal performance for industrial power systems, motor drives, battery management, and portable power equipment.
The MCAC130N04Y delivers a maximum RDS(on) of just 1.9 mΩ, minimizing conduction losses in high-current applications. With a continuous drain current rating of 130A at TC=25°C and advanced Split Gate Trench technology, the device provides efficient switching performance and excellent thermal management through its 1°C/W junction-to-case thermal resistance. The MOSFET supports applications where efficiency, reliability, and compact design are critical.
40V N-Channel SGT Power MOSFET
Features & Benefits:
- 40V N-Channel Power MOSFET supports mid-voltage switching and power-conversion designs
- Ultra-low RDS(on) of 1.9 mΩ minimizes conduction loss
- Advanced SGT MOSFET technology minimizes conduction and switching losses while improving switching performance
- Total gate charge of 129 nC supports switching-performance optimization
- Low junction-to-case thermal resistance of 1°C/W enables efficient heat dissipation during high-power operation
- Halogen-free, RoHS-compliant, and Moisture Sensitivity Level 1 construction supports environmentally responsible designs
Applications
|
|
|
|
|
Power Conversion
|
Motor Control
|
Data Center and Telecom |
|
|
|
|
|
|
|

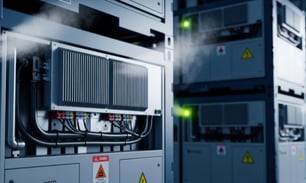

Battery and Energy Storage
|
Power Tools
|
|
|
Product Attributes, Parametrics & Datasheet
|
Product |
Type |
Package | Channel | Drain-Source Voltage VDS (V) |
Gate-Source Voltage VGS (V) |
Continuous Drain Current ID(A) | Drain-Source On-Resistance RDS(ON) Max @VGS=10V (mΩ) |
Total Gate Charge Qg (nC) | Datasheet |
| MCAC130N04Y | PDFN5060 | N-Channel |
40 |
±20 |
130 |
1.9 |
129 |
Now available, purchase directly from MCC or through our authorized distributors.
For technical inquiries or sample requests, contact MCC for support.
