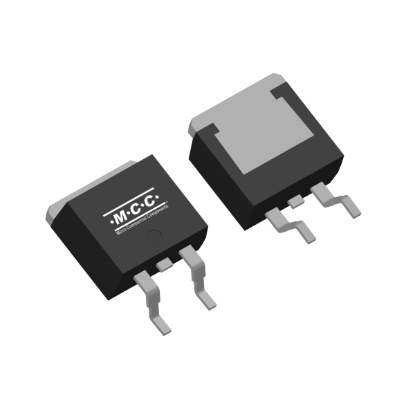

MIB30N65AT2Y-TP 650V Trench Field-Stop IGBT Featuring Low VCE(sat), Low Switching Loss, and Compact Surface-Mount D2-PAK Packaging
Micro Commercial Components (MCC) introduces the MIB30N65AT2Y-TP, a high-performance 650V Trench Field-Stop IGBT designed to improve efficiency, thermal performance, and reliability in demanding industrial power conversion systems. As modern power electronics continue to increase switching frequencies while reducing system size, engineers require compact IGBT solutions that deliver low switching losses, excellent thermal stability, and reliable operation under demanding electrical conditions.
The MIB30N65AT2Y-TP addresses these challenges by combining a 650V collector-emitter voltage rating with a 30A continuous collector current in the industry-standard D2-PAK package. Built on advanced Trench Field-Stop technology, the device features a low collector-emitter saturation voltage (VCE(sat)) of only 1.75V, high pulse current capability up to 120A, smooth switching performance, a positive temperature coefficient for simplified parallel operation, and a maximum junction temperature of 175°C. These characteristics make it well suited for industrial power supplies, renewable energy systems, EV charging equipment, welding converters, uninterruptible power supplies (UPS), and high-current switching applications.
650V Trench Field-Stop (TFS) IGBT
Features & Benefits:
- 650V VCE: Provides reliable high-voltage switching capability for industrial power conversion applications.
- Low VCE(sat): Typical collector-emitter saturation voltage of only 1.75V minimizes conduction losses and improves overall conversion efficiency.
- Trench Field-Stop Technology: Reduces switching losses while providing excellent conduction performance and improved power density.
- 30A IC: Supports demanding high-current power stages and industrial switching applications.
- 120A Pulse Collector Current (ICpulse): Withstands transient overload conditions and supports high inrush current applications.
- Smooth Switching Performance: Optimized for soft-switching topologies to improve efficiency and reduce electrical stress.
- Positive Temperature Coefficient: Promotes natural current sharing, simplifying parallel operation and improving system reliability.
- 175°C Maximum Junction Temperature: Enables reliable operation under demanding thermal environments and heavy load conditions.
- D2-PAK Package: Compact surface-mount package provides efficient thermal dissipation while enabling automated PCB assembly.
- RoHS Compliant: Supports environmentally responsible electronic product development.
Applications
The MIB30N65AT2Y-TP is designed for high-voltage switching applications requiring low switching losses, excellent thermal performance, and reliable long-term operation. Its electrical characteristics and compact D2-PAK package make it well suited for industrial, renewable energy, and power conversion systems.
|
|
|
|
Industrial Power Systems
|
Renewable Energy
|
|
|
|
|
|
|
Power Conversion
|

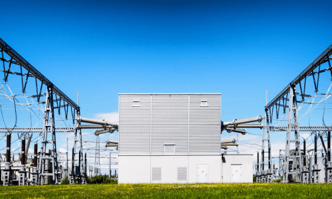

Power Infrastructure
|
|
|
%20for%20efficient%20power%20conversion%20mcc%20semi%20micro%20commercial%20components%20700x500.png?width=294&height=210&name=Industrial%20Switched-mode%20power%20supplies%20(SMPS)%20for%20efficient%20power%20conversion%20mcc%20semi%20micro%20commercial%20components%20700x500.png)
Product Attributes, Parametrics & Datasheet
|
Product |
Type |
Package |
VCE (V) |
IC (A) |
VCE(sat) [Typ] (V) |
Datasheet |
| MIB30N65AT2Y-TP |
D2-PAK |
650 |
30 |
1.75 |
Now available, purchase directly from MCC or through our authorized distributors.
For technical inquiries or sample requests, contact MCC for support.
