New Transient Voltage Suppressors (TVS)
• SMG-Series • SME-Series

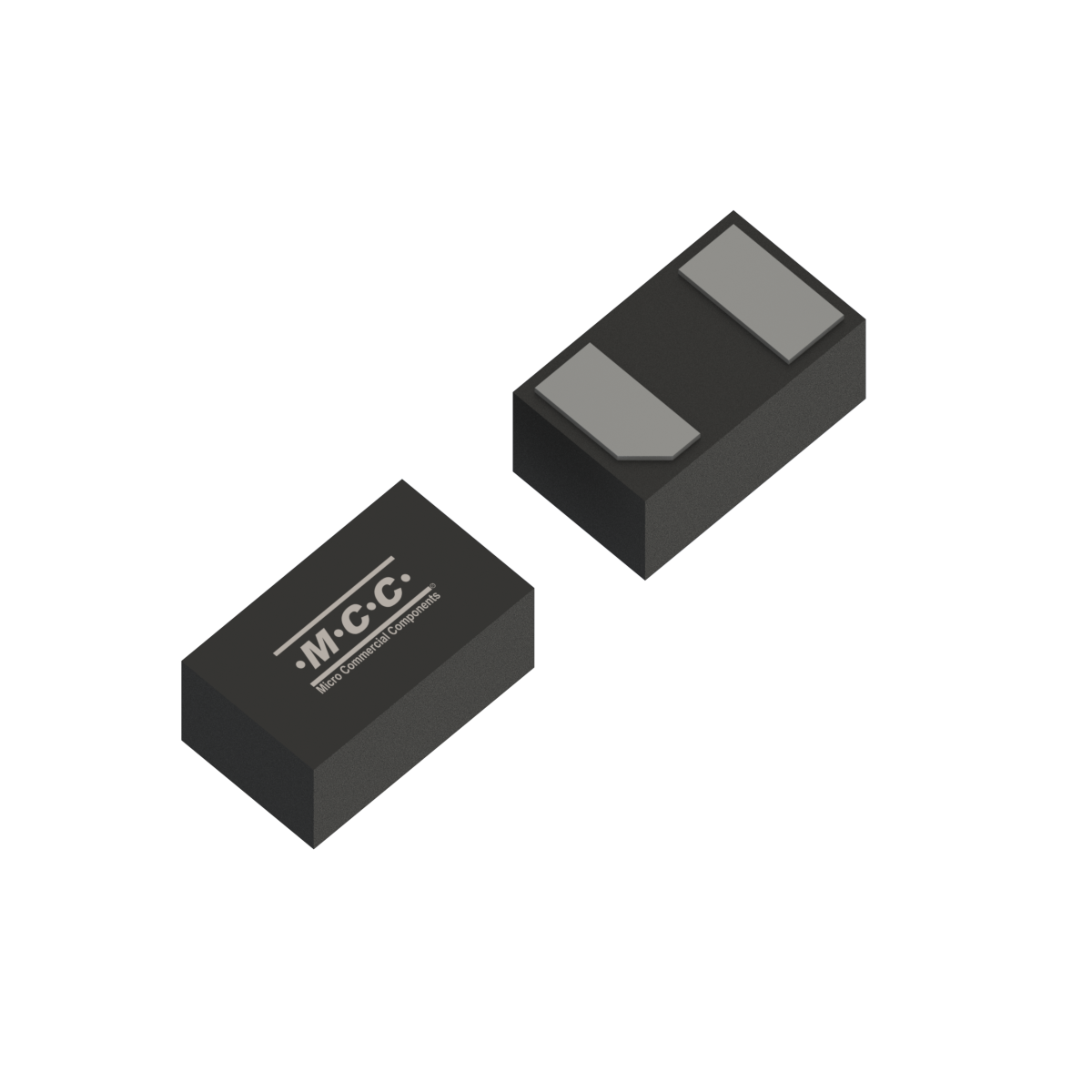

Micro Commercial Components extends their large TVS portfolio with bi-directional high surge current capability diodes in surface mount technology, ideal for automated placement.
%20MCC%20-%20micro%20commercial%20Components.jpg?width=349&height=198&name=New%20transient%20Voltage%20Suppressors%20(TVS)%20MCC%20-%20micro%20commercial%20Components.jpg) |
These bidirectional TVS diodes are available in our new SME and SMG packages offering peak pulse current IPP up to 2,5kA (SMG) and 10kA (SME) at working peak reverse voltage VRWM of 58V…86V. |
Key Features:
- Surge Capability 10000A (8/20µs)
- Bi-directional TVS
- Low Clamping Voltage under Surge •
- Halogen Free & “Green”
%20MCC%20micro%20commercial%20Components.jpg?width=336&height=256&name=New%20transient%20Voltage%20Suppressors%20(TVS)%20MCC%20micro%20commercial%20Components.jpg)
Applications:
- DC Line Protection
- Power Supply Protection
- Protection in harsh environments
- 4G/5G Base station
Key Parameters
|
Part Number |
Breakdown Voltage VBR(V) MIn/Max |
Maximum Reverse Leakage @VRWM IR(µA) |
Working Peak Reverse Voltage VRWM(V) |
Typ. Capacitance 0V Bias 1 0kH z C(nF) |
Maximum Clamping Voltage@ IPP VC(V) |
Peak Pulse Current (8/20µs) IPP(A) |
| SMEJ58CA | 64/70 | 5 | 58 | 6,5 | 110 | 10000 |
| SMEJ66CA | 72/80 | 5 | 66 | 6,5 | 120 | 10000 |
| SMEJ76CA | 85/95 | 5 | 76 | 6,5 | 135 | 10000 |
| SMEJ86CA | 96/107 | 5 | 86 | 6,0 | 157 | 10000 |
| SMGJ80CA | 190/110 | 5 | 80 | 1,5 | 130 | 25006 |
