MCC's MCMWF013N04LHE3 Trench LV technology delivers ultra-low on-resistance, automotive-grade reliability, and enhanced manufacturing inspection capability
Micro Commercial Components Corp. (MCC) announces the MCMWF013N04LHE3, an AEC-Q101 qualified 40V N-Channel Small Signal MOSFET designed for automotive body electronics, telematics control unit, motor control, and power-conversion applications where space, efficiency, and reliability are critical.

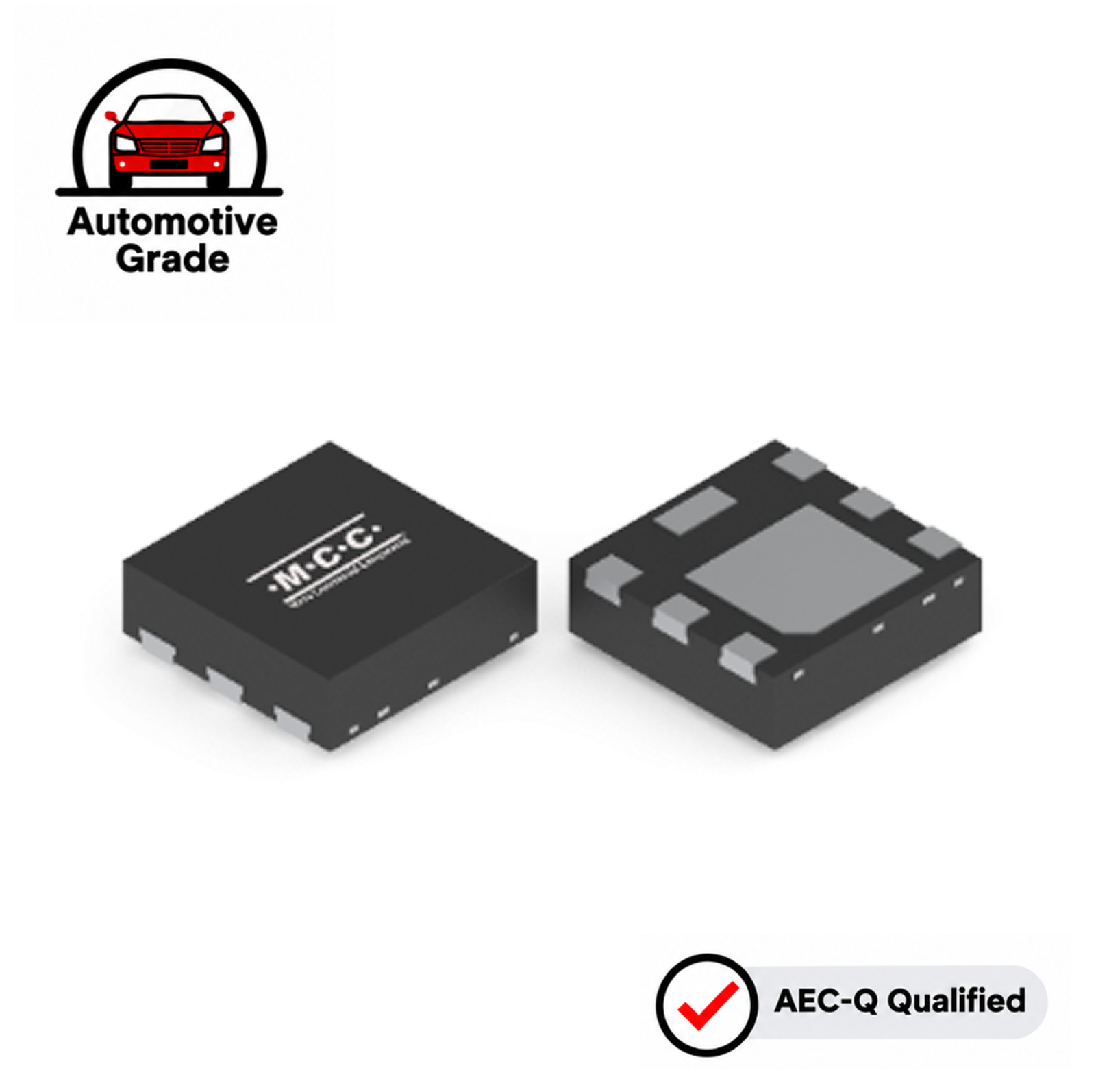

This automotive-grade device combines Trench LV MOSFET technology with an ultra-compact DFN2020-6 package featuring side-wettable flanks, delivering ultra-low on-resistance, excellent thermal performance, and enhanced manufacturing quality in a miniature 2.0mm × 2.0mm footprint.
40V N-Channel Small Signal MOSFET
Features & Benefits:
- 40V N-Channel Small Signal MOSFET supports mid-voltage switching and power-conversion designs
- Low RDS(on) of 13 mΩ minimizes conduction loss
- Advanced Trench LV MOSFET technology minimizes conduction and switching losses while improving switching performance
- Total gate charge of 22 nC supports switching-performance optimization
- Low junction-to-case thermal resistance of 4.4°C/W enables efficient heat dissipation during high-power operation
Applications
|
|
|
|
|
Power Conversion
|
Motor Control
|
Industrial Systems |
|
|
|
|
|
|
|
Automotive
|
Battery-Powered Systems
|
|
|
Product Attributes, Parametrics & Datasheet
|
Product |
Type |
Package | Channel | Drain-Source Voltage VDS (V) |
Gate-Source Voltage VGS (V) |
Continuous Drain Current ID(A) | Drain-Source On-Resistance RDS(ON) Max @VGS=10V (mΩ) |
Total Gate Charge Qg (nC) | Datasheet |
| MCMWF013N04LHE3 | DFN2020-6(SWF) | N-Channel |
40 |
±20/-16 |
33 |
13 |
22 |
Now available, purchase directly from MCC or through our authorized distributors.
For technical inquiries or sample requests, contact MCC for support.
