Thermally enhanced PDFN5060 package with 1.24°C/W junction-to-case thermal resistance supports demanding industrial and power-management designs
Micro Commercial Components (MCC) announces the MCAC028N15Y, a 150V N-Channel Power MOSFET designed to address efficiency and thermal management challenges. The device combines Split Gate Trench technology with a thermally enhanced PDFN5060 package, delivering low on-resistance and effective heat dissipation in a compact 5.0mm × 6.0mm footprint.
The MCAC028N15Y features a maximum RDS(on) of 28mΩ, supporting continuous drain current (ID) up to 40A. Advanced Split Gate Trench MOSFET technology reduces switching losses while improving switching performance, and the low junction-to-case thermal resistance of 1.24°C/W enables efficient heat dissipation during high-power operation. These characteristics make the device well-suited for DC/DC converters, BLDC motor drives, industrial automation, battery management systems, and portable power stations.

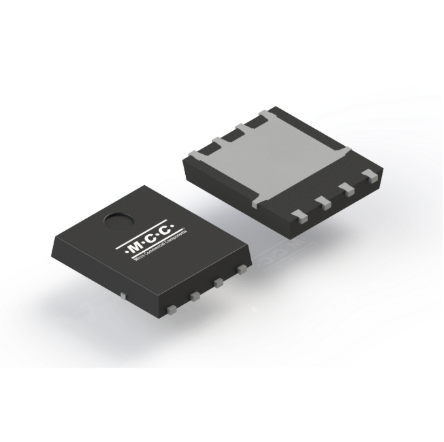

150V N-Channel Power MOSFET
Features & Benefits:
- 150V drain-source voltage (VDS): Supports mid-voltage power-conversion and switching applications
- Low RDS(on) of 28mΩ: Supports reduced conduction loss
- Advanced Split Gate Trench MOSFET technology: Reduces switching losses while improving switching performance
- Total gate charge (Qg) of 18.2nC: Supports switching-performance optimization
- Low junction-to-case thermal resistance of 1.24°C/W: Enables efficient heat dissipation during high-power operation
Applications
|
|
|
|
Industrial Power Systems
|
Battery and Energy Storage
|
|
|
%20cabinet%20-%20mcc%20semi%20500x300.png?width=291&height=175&name=_industrial%20battery%20energy%20storage%20system%20(BESS)%20cabinet%20-%20mcc%20semi%20500x300.png)
|
|
|
|
Motor Drive & Traction
|
Power Conversion
|
|
|
%20for%20efficient%20power%20conversion%20mcc%20semi%20micro%20commercial%20components%20700x500.png?width=249&height=178&name=Industrial%20Switched-mode%20power%20supplies%20(SMPS)%20for%20efficient%20power%20conversion%20mcc%20semi%20micro%20commercial%20components%20700x500.png)
Product Attributes, Parametrics & Datasheet
|
Product |
Type |
Package | Channel | Drain-Source Voltage VDS (V) |
Gate-Source Voltage VGS (V) |
Continuous Drain Current ID (A) | Drain-Source On-Resistance RDS(ON) Max @VGS=10V (Ω) |
Total Gate Charge Qg (nC) | Datasheet |
| MCAC028N15Y-TP | PDFN5060 | N-Channel |
150 |
±20 |
40 |
0.028 |
18.2 |
Now available, purchase directly from MCC or through our authorized distributors.
For technical inquiries or sample requests, contact MCC for support.
