Get Performance Optimized for Load Dump in a DO-218AB SMD Package

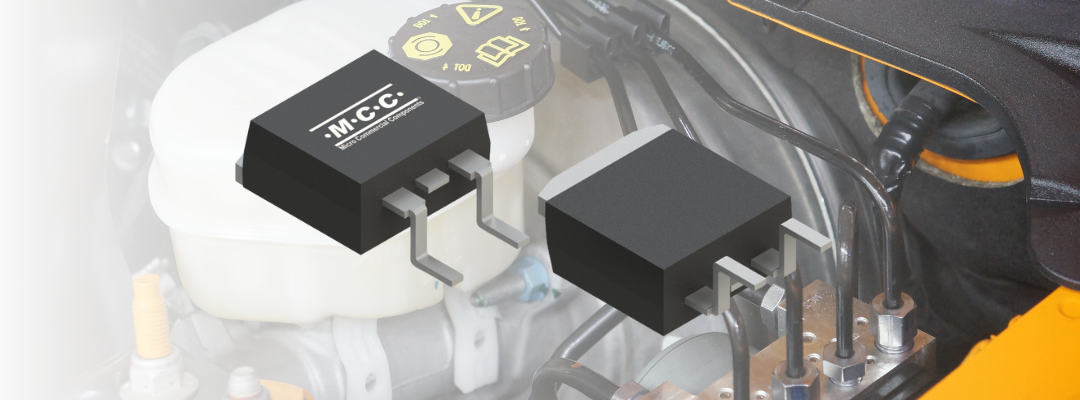

MCC Semi is thrilled to roll out our SM5S series TVS diodes. Engineered to meet the demanding requirements of automotive applications, SM5S30CAHE3, SM5S33CAHE3, SM5S36CAHE3, and SM5S18CAHE3 offer 3600W of peak pulse power handling capability in the compact DO-218AB package.
Leverage these TVS diodes to ensure sensitive electronic systems are well-protected from transient voltage caused by electrostatic discharge or lightning surges. With excellent clamping capability, our TVS diodes are optimized for effective load dump suppression, making them the ideal solution for a wide range of automotive electronics.
AEC-Q101 qualification and the ability to withstand operating junction temperatures up to 175°C further demonstrate their reliability. Versatile working voltage ranges from 18V to 36V enable ultimate versatility in industrial, telecommunications, and consumer markets, as well as the challenging automotive segment.
Features & Benefits:
- AEC-Q101 Qualified: Meet stringent auto standards for reliability and performance
- High Peak Pulse Power Dissipation:
- 3600W (10/1000µs waveform)
- 2800W (10/10000µs waveform)
- IEC 61000-4-2 (ESD): ±30kV (Air), ±30kV (Contact) for superior electrostatic discharge protection
- Operating Junction Temperature: Can withstand up to 175°C to assure performance in extreme conditions
- Excellent Clamping Capability: Provides reliable voltage clamping to protect sensitive components
- DO-218AB Package: Designed for enhanced thermal performance and compact integration
Applications
MCC’s new 3600W Auto-Grade TVS Diode lineup boasts the reliability and performance to provide robust protection for sensitive electronic systems in diverse applications, including:
|
|
|
|
|
|
Automotive |
Industrial |
Consumer |
Telecommunications |
|
|
|
|
Product Attributes, Parametrics & Datasheets
|
Product |
Type |
Package |
Peak Pulse Power |
Reverse Standoff |
Mounting Type |
Datasheet |
|
TVS Diode |
DO-218AB |
3600W |
30V |
Surface-Mount (SMD) |
||
|
TVS Diode |
DO-218AB |
3600W |
33V |
Surface-Mount (SMD) |
||
|
TVS Diode |
DO-218AB |
3600W |
36V |
Surface-Mount (SMD) |
||
|
TVS Diode |
DO-218AB |
3600W |
18V |
Surface-Mount (SMD) |
To learn more about transient voltage suppressors and MCC’s robust TVS portfolio, check out our comprehensive guide.
Contact MCC to request a sample or ask a question.
