Compact Design Meets Exceptional Performance Amid Height Constraints

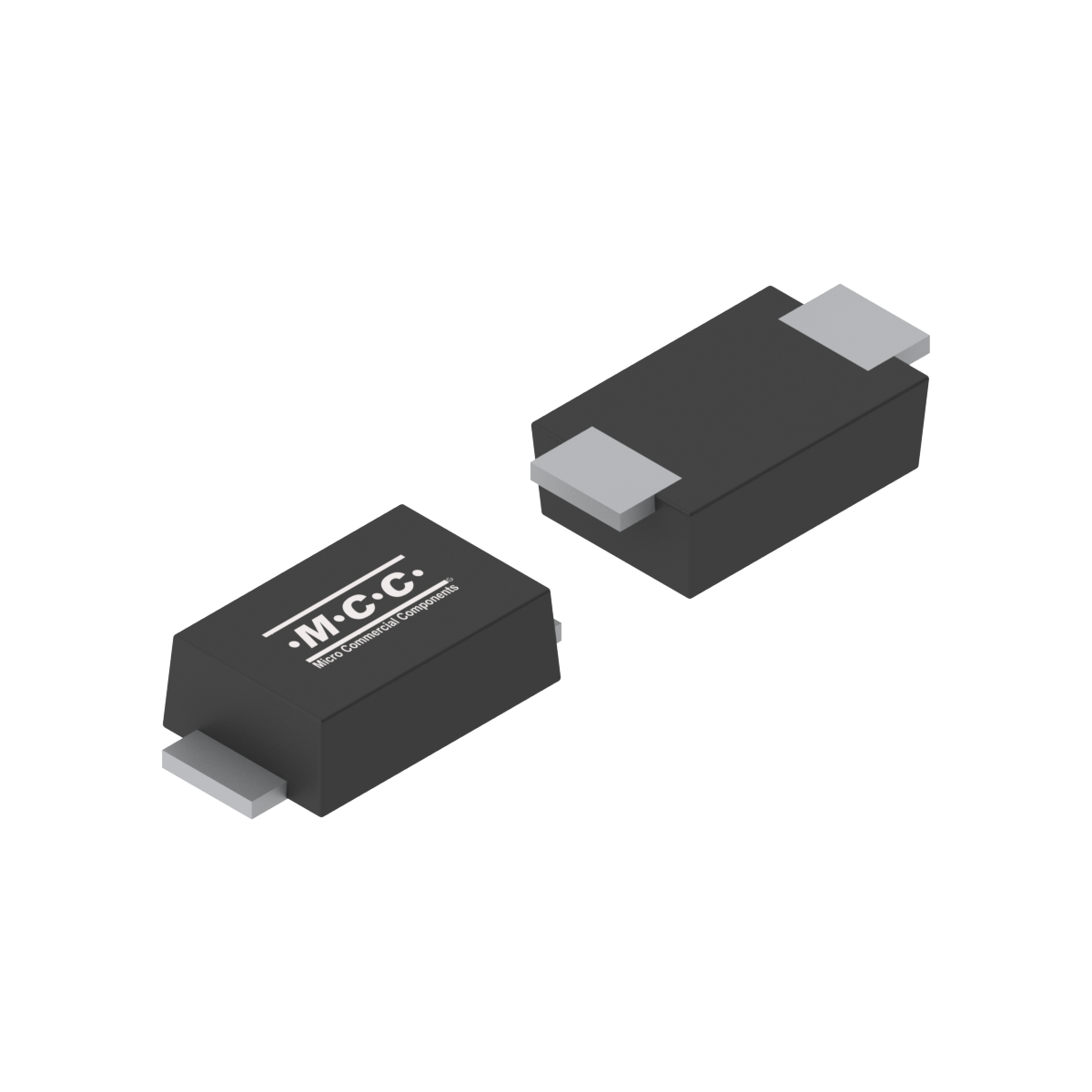

MCC Semi is thrilled to introduce our ZENER SMAF Series, a robust collection of diodes designed to address the common challenge of integrating components in space-constrained environments. Our 1W Zener diodes are housed in a sleek, low-profile DO-221AC (SMA-FL) package for enhanced versatility.
Compared to the standard SMA package footprint, these new components provide a 50% reduction in height without skimping on performance or reliability.
A wide voltage selection ranging from 6.2V to 100V ensures these products are well-suited for diverse consumer, industrial, and telecommunications applications. High-temperature resilience in demanding environments is assured, thanks to our diodes’ ability to withstand operating junction temperatures up to 150°C.
Level up from the familiar SMA footprint with MCC’s compact yet superior ZENER SMAF Series in the SMA-FL package.
Features & Benefits:
- Compact Design: Ideal for space-constrained applications, the low-profile DO-221AC (SMA-FL) package reduces height by 50% compared to standard SMA packages.
- Wide Voltage Range:: Caters to a broad spectrum of applications thanks to voltage options from 6.2V to 100V.
- High-Temperature Resilience: Capable of performing at junction temperatures up to 150°C, these diodes ensure stable operation in demanding environments.
- Reliable in Diverse Applications: : These diodes are designed to deliver consistent performance across various sectors, including consumer electronics, industrial, and telecommunications.
Applications
MCC’s compact ZENER SMAF Series diodes deliver seamless integration for designs across multiple industries and applications:
|
|
|
|
|

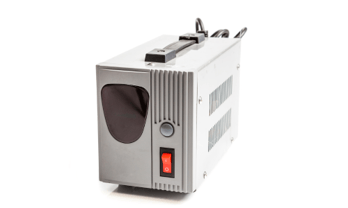

Consumer Electronics |
Industrial |
Telecommunications |
|
|
|
Product Attributes, Parametrics & Datasheets
|
Product |
Type |
Package |
DC Power |
Drain-NominalZener VoltageVZ@IZT |
Mounting Type |
Datasheet |
|
Zener Diode |
DO-221AC (SMA-FL) |
1W |
6.2V |
Surface-Mount (SMD) |
||
|
Zener Diode |
DO-221AC (SMA-FL) |
1W |
6.8V |
Surface-Mount (SMD) |
||
|
Zener Diode |
DO-221AC (SMA-FL) |
1W |
7.5V |
Surface-Mount (SMD) |
||
|
Zener Diode |
DO-221AC (SMA-FL) |
1W |
8.2V |
Surface-Mount (SMD) |
||
|
Zener Diode |
DO-221AC (SMA-FL) |
1W |
9.1V |
Surface-Mount (SMD) |
||
|
Zener Diode |
DO-221AC (SMA-FL) |
1W |
10V |
Surface-Mount (SMD) |
||
|
Zener Diode |
DO-221AC (SMA-FL) |
1W |
11V |
Surface-Mount (SMD) |
||
|
Zener Diode |
DO-221AC (SMA-FL) |
1W |
12V |
Surface-Mount (SMD) |
||
|
Zener Diode |
DO-221AC (SMA-FL) |
1W |
13V |
Surface-Mount (SMD) |
||
|
Zener Diode |
DO-221AC (SMA-FL) |
1W |
14V |
Surface-Mount (SMD) |
||
|
Zener Diode |
DO-221AC (SMA-FL) |
1W |
16V |
Surface-Mount (SMD) |
||
|
Zener Diode |
DO-221AC (SMA-FL) |
1W |
18V |
Surface-Mount (SMD) |
||
|
Zener Diode |
DO-221AC (SMA-FL) |
1W |
20V |
Surface-Mount (SMD) |
||
|
Zener Diode |
DO-221AC (SMA-FL) |
1W |
22V |
Surface-Mount (SMD) |
||
|
Zener Diode |
DO-221AC (SMA-FL) |
1W |
24V |
Surface-Mount (SMD) |
||
|
Zener Diode |
DO-221AC (SMA-FL) |
1W |
27V |
Surface-Mount (SMD) |
||
|
Zener Diode |
DO-221AC (SMA-FL) |
1W |
30V |
Surface-Mount (SMD) |
||
|
Zener Diode |
DO-221AC (SMA-FL) |
1W |
33V |
Surface-Mount (SMD) |
||
|
Zener Diode |
DO-221AC (SMA-FL) |
1W |
36V |
Surface-Mount (SMD) |
||
|
Zener Diode |
DO-221AC (SMA-FL) |
1W |
39V |
Surface-Mount (SMD) |
||
|
Zener Diode |
DO-221AC (SMA-FL) |
1W |
43V |
Surface-Mount (SMD) |
||
|
Zener Diode |
DO-221AC (SMA-FL) |
1W |
47V |
Surface-Mount (SMD) |
||
|
Zener Diode |
DO-221AC (SMA-FL) |
1W |
51V |
Surface-Mount (SMD) |
||
|
Zener Diode |
DO-221AC (SMA-FL) |
1W |
56V |
Surface-Mount (SMD) |
||
|
Zener Diode |
DO-221AC (SMA-FL) |
1W |
62V |
Surface-Mount (SMD) |
||
|
Zener Diode |
DO-221AC (SMA-FL) |
1W |
68V |
Surface-Mount (SMD) |
||
|
Zener Diode |
DO-221AC (SMA-FL) |
1W |
75V |
Surface-Mount (SMD) |
||
|
Zener Diode |
DO-221AC (SMA-FL) |
1W |
82V |
Surface-Mount (SMD) |
||
|
Zener Diode |
DO-221AC (SMA-FL) |
1W |
91V |
Surface-Mount (SMD) |
||
|
Zener Diode |
DO-221AC (SMA-FL) |
1W |
100V |
Surface-Mount (SMD) |
