Compact SMD Devices with Low RDS(on) for Efficient Power Switching
MCC introduces the MCAC Power MOSFET Series, a family of 40V and 100V N-Channel and P-Channel devices designed to address efficiency, thermal performance, and PCB space constraints in modern power designs. Engineered for industrial, consumer, and automotive applications, the series delivers low conduction and switching losses, strong current capability, and reliable thermal performance in compact surface-mount packages.
Built on split gate trench technology, the MCAC series achieves low RDS(on) and optimized switching behavior, helping reduce power loss and improve overall system efficiency. With both N- and P-Channel options available, along with AEC-Q101 qualified variants, the portfolio provides flexibility for high-side and low-side switching across a wide range of power architectures.

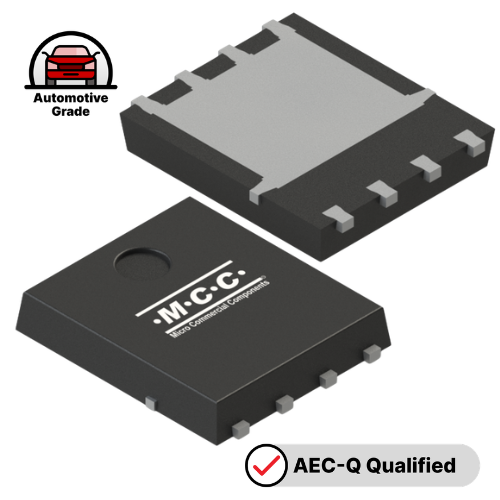

40V & 100V N- and P-Channel MOSFET
Features & Benefits:
- Split gate trench MOSFET technology optimized for low switching losses and efficient operation
- 40V and 100V drain-source voltage (VDS) options supporting diverse power designs
- Low RDS(on) configurations to minimize conduction losses
- N-Channel and P-Channel devices for flexible switching topologies
- Compact surface-mount packages DFN5060
- Optimized thermal performance with low junction-to-ambient thermal resistance
- AEC-Q101 automotive-grade variants available for enhanced reliability in demanding environments
Applications
|
|
|
|
|
|
Power Conversion and Distribution
|
Motor Control
|
Energy Storage and Battery Systems |
Automotive, Industrial, and Consumer Electronics |
|
|
|
|
Product Attributes, Parametrics & Datasheet
|
Product |
Type |
package |
Channel |
Number of Functions |
Drain-Source |
Gate-Source |
Drain |
Gate |
Drain-Source |
Datasheet |
|
Power MSOFET |
DFN5060 |
N |
Single |
100 |
±20 |
144 |
2.4 | 0.0046 | ||
|
Power MSOFET |
DFN5060 |
N |
Single |
40 |
±20 |
180 |
2 |
0.002 |
||
|
Power MSOFET |
DFN5060 |
P |
Single |
-100 |
±20 |
-25 |
-1.9 |
0.054 |
||
|
Power MSOFET |
DFN5060 |
N |
Single |
40 |
±20 |
80 |
1.2 |
0.0044 |
||
|
Power MSOFET |
DFN5060 |
N |
Single |
100 |
±20 |
81 |
2 |
0.0083 |
Now available, purchase directly from MCC or through our authorized distributors.
For technical inquiries or sample requests, contact MCC for support.
