15A Fast-Recovery Rectifier with 500ns Reverse Recovery Time, 1.2V Forward Voltage, and 200A Surge Capability for Industrial and Power Applications

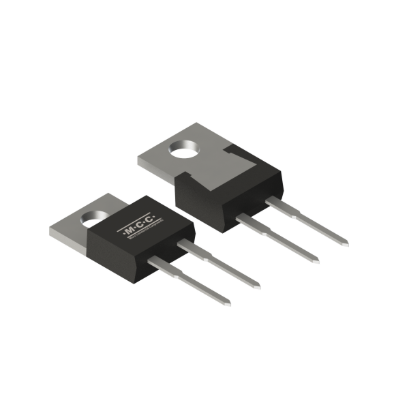

Micro Commercial Components (MCC) introduces the FR15140-BP, a high-performance 1400V 15A Fast Recovery Rectifier Diode housed in a rugged TO-220AC package. Designed for high-voltage power conversion systems, the device combines fast reverse recovery performance with a low forward voltage to help reduce switching and conduction losses.
With a 500ns maximum reverse recovery time, the FR15140-BP supports high-frequency switching while helping minimize reverse recovery losses and associated EMI. Its 1.2V typical forward voltage at 15A, 200A non-repetitive peak surge current, and glass-passivated chip junction provide reliable performance for demanding power electronics applications.
Features & Benefits:
- High-Voltage Capability: 1400V VRRM supports high-voltage power conversion and inverter designs.
- Fast Reverse Recovery: 500ns maximum trr helps reduce switching losses in high-frequency applications.
- Low VF: 1.2V typical forward voltage at 15A reduces conduction losses and improves power efficiency.
- High Surge Capability: 200A IFSM provides enhanced ruggedness against transient current events.
- Glass-Passivated Junction: Improves reliability and stable electrical performance under demanding operating conditions.
- Low IR: Reverse current remains below 500µA at 1400V and 125°C, minimize standby and reverse losses.
- TO-220AC Package: Provides a proven through-hole package suitable for power applications requiring effective thermal management.
Applications
|
|
|
|
|
Industrial Power System |
Renewable Energy |
Power Conversion |
|
|
|
%20mcc%20semi%20-%20micro%20commercial%20components%20500x300.png?width=273&height=164&name=Power%20distribution%20units%20(PDUs)%20mcc%20semi%20-%20micro%20commercial%20components%20500x300.png)
Product Attributes, Parametrics & Datasheet
|
Product |
Type |
Package |
VRRM (V) |
IF(AV) (A) |
IFSM (A) |
TRR (max) (ns) |
VF [typ] (V) |
Datasheet |
|
1400 |
15 |
200 |
500 |
1.2 |
Now available, purchase directly from MCC or through our authorized distributors.
For technical inquiries or sample requests, contact MCC for support.
