1200V IGBT Modules Featuring Low VCE(sat), Integrated Soft-Recovery Freewheeling Diodes, and Rugged E1A & E2 Packages for Industrial Power Conversion
Micro Commercial Components (MCC) expands its IGBT module portfolio with the introduction of the MIP50R12E1AML-BP and MIP75R12E2ML-BP, a new family of 1200V IGBT modules designed to deliver high efficiency, rugged performance, and thermal reliability for demanding industrial power conversion systems. As industrial applications continue to demand higher power density, greater efficiency, and long-term reliability, engineers require IGBT modules that minimize switching losses while maintaining stable operation under harsh electrical and thermal conditions.
The MIP Series addresses these challenges by combining a 1200V collector-emitter voltage rating with 50A and 75A current options in industry-standard E1A and E2 module packages. Featuring low collector-emitter saturation voltage (VCE(sat) typ. 2.05V and 1.9V), integrated ultra-fast soft-recovery anti-parallel freewheeling diodes (FWD), high short-circuit withstand capability of up to 8µs, and a maximum junction temperature of 175°C, the modules are engineered for efficient, high-power operation. An integrated NTC thermistor enables accurate temperature monitoring, while the low-inductance package design improves switching performance and overall system reliability. These characteristics make the MIP Series an ideal solution for motor drives, UPS systems, welding equipment, servo drive systems, industrial inverters, renewable energy converters, and industrial power supplies.

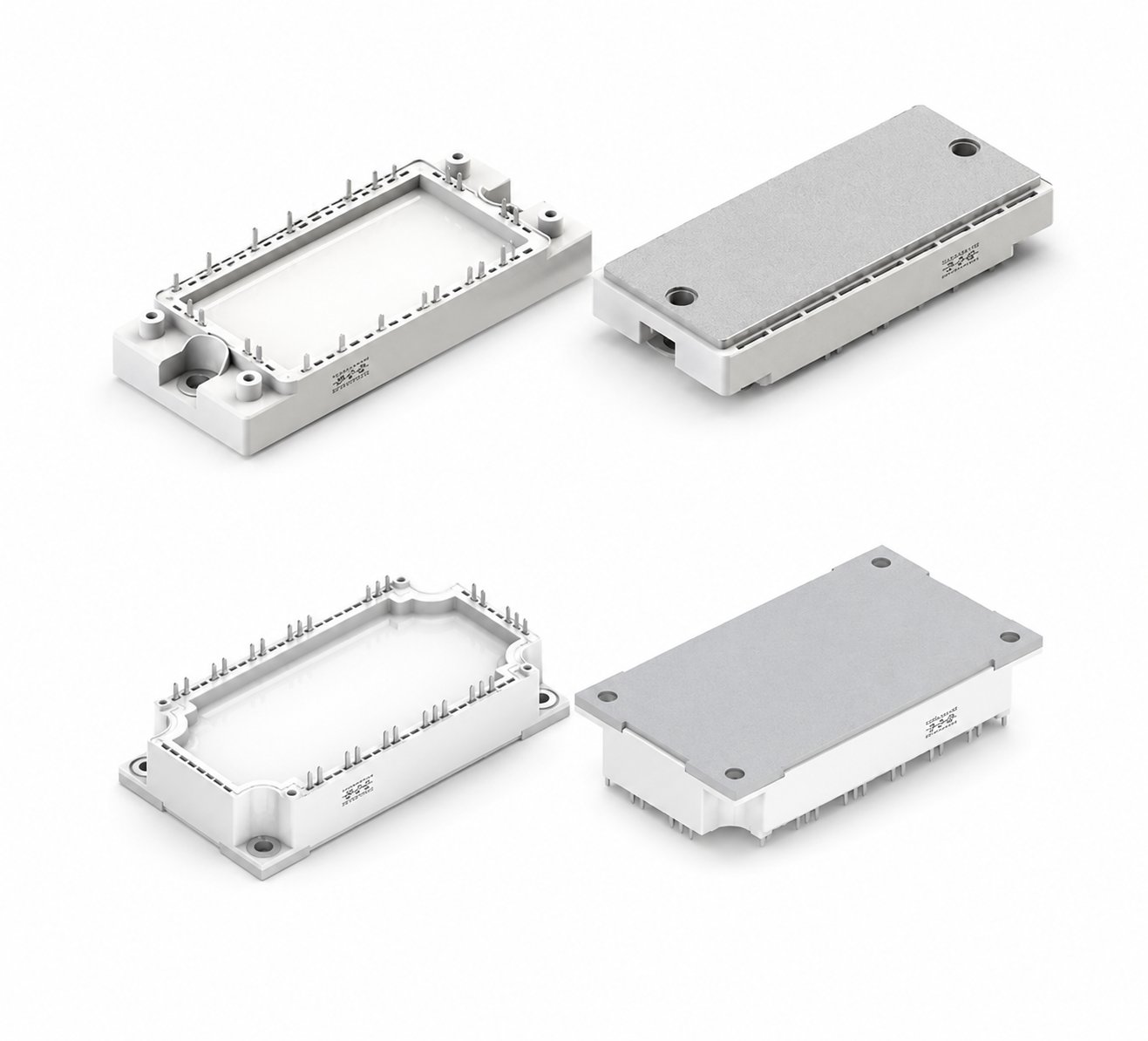

1200V IGBT Module
Features & Benefits:
- 1200V VCE: Provides reliable high-voltage switching capability for demanding industrial power conversion applications.
- Low VCE(sat): Collector-emitter saturation voltage below 2.05V and 1.9V minimizes conduction losses and improves overall system efficiency.
- Low Switching Loss: Improves conversion efficiency while reducing heat generation during high-frequency operation.
- Integrated Ultra-Fast Soft-Recovery Anti-Parallel FWD: Minimizes reverse recovery losses, improves switching performance, and reduces EMI.
- 8µs Short-Circuit Withstand Capability: Enhances system robustness and provides greater protection under fault conditions.
- Low-Inductance Package Design: Reduces parasitic inductance to improve switching characteristics and overall converter performance.
- Integrated NTC Thermistor: Enables accurate temperature monitoring for improved thermal management and system protection.
- 175°C Maximum Junction Temperature: Supports reliable operation in demanding thermal environments and high-power applications.
- Industry-Standard E1A & E2 Packages: Simplify system integration while providing excellent thermal performance and mechanical reliability.
- RoHS Compliant: Supports environmentally responsible electronic product development.

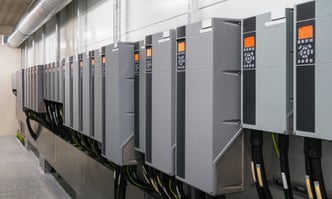

Applications
The MIP Series 1200V IGBT Modules are designed for high-power switching applications requiring high efficiency, excellent thermal performance, and long-term reliability. Their rugged module construction and integrated protection features make them ideal for industrial power conversion and motor control systems.
|
|
|
|
Industrial Power Systems
|
Renewable Energy
|
|
|
|
|
|
|
Power Conversion
|
Power Infrastructure
|
|
|
Product Attributes, Parametrics & Datasheet
|
Product |
Type |
Package |
VCE (V) |
IC (A) |
VCE(sat) [Typ] (V) |
Datasheet |
| MIP50R12E1AML-BP |
E1A |
1200 |
50 |
2.05 |
||
| MIP75R12E2ML-BP | E2 |
1200 |
75 |
1.90 |
Now available, purchase directly from MCC or through our authorized distributors.
For technical inquiries or sample requests, contact MCC for support.
