72 mΩ maximum RDS(on), 24A current capability, and low thermal resistance

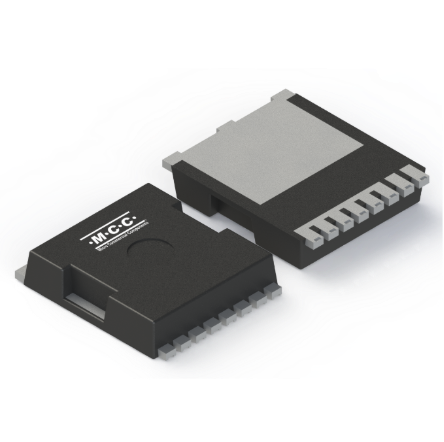

MCC announces the MDTK072N60H, a 600V N-Channel Power MOSFET designed to address the challenges of high-voltage power conversion in space-constrained industrial and infrastructure applications. Built with Super Junction technology and packaged in a compact TOLL-8L-KS surface-mount footprint, the device combines robust current handling with effective thermal management for demanding power stages.
The MDTK072N60H features a maximum on-resistance of 72 mΩ, supporting reduced conduction losses in high-voltage switching circuits. With continuous drain current capability of 24A and junction-to-case thermal resistance of 1.1°C/W, the device delivers reliable performance across AC/DC power supplies, server power systems, industrial power conversion, and renewable energy applications.
60V N-Channel Power MOSFET
Features & Benefits:
- 600V N-Channel Power MOSFET supports high-voltage switching and power-conversion designs
- Maximum RDS(on) of 72 mΩ supports reduced conduction loss
- High continuous drain current up to 24A supports high-power applications
- Advanced Super Junction MOSFET technology minimizes conduction and switching losses while improving efficiency in high-voltage power conversion
- The TOLL-8L-KS package provides effective thermal performance in a compact surface-mount footprint
- Total gate charge of 70 nC supports switching-performance optimization
- Halogen-free, RoHS-compliant, and Moisture Sensitivity Level 1 construction supports environmentally responsible designs
Applications
|
|
|
|
Power Conversion
|
Renewable Energy
|
|
|
|
|
|
|
Data Center and Telecom
|
Industrial Infrastructure
|
|
|
Product Attributes, Parametrics & Datasheet
|
Product |
Type |
Package | Channel | Drain-Source Voltage VDS (V) |
Gate-Source Voltage VGS (V) |
Continuous Drain Current ID(A) | Drain-Source On-Resistance RDS(ON) Max @VGS=10V (mΩ) |
Total Gate Charge Qg (nC) | Datasheet |
| MDTK072N60H | TOLL-8L-KS | N-Channel |
600 |
±30 |
24 |
72 |
70 |
Now available, purchase directly from MCC or through our authorized distributors.
For technical inquiries or sample requests, contact MCC for support.
