High-Power Performance in a Compact TOLL-8L Package: MCC's MCTL1DxN N-Channel MOSFET Series

Ultra-Low RDS(on) down to 1.0mΩ, High Current Capability up to 364A, and Superior Thermal Performance for Next-Generation Power Systems

Micro Commercial Components (MCC) introduces the MCTL1DxN series, a family of high-performance N-channel power MOSFETs designed to deliver exceptional efficiency and high-current capability in demanding power applications. As modern power systems continue to increase in power density while reducing system size, designers require MOSFETs that combine ultra-low conduction losses, excellent thermal performance, and fast switching characteristics.

The MCTL1DxN series addresses these challenges by offering 40V, 60V, 80V, and 100V voltage options with ultra-low RDS(on) down to 1.0mΩ and continuous drain current capability up to 364A. Built on advanced Split Gate Trench (SGT) MOSFET technology and housed in the thermally optimized TOLL-8L package, these devices minimize switching and conduction losses while maximizing heat dissipation. The series is well suited for high-efficiency DC-DC converters, server power supplies, e-mobility systems, motor drives, battery management systems, and high-current power distribution architectures.

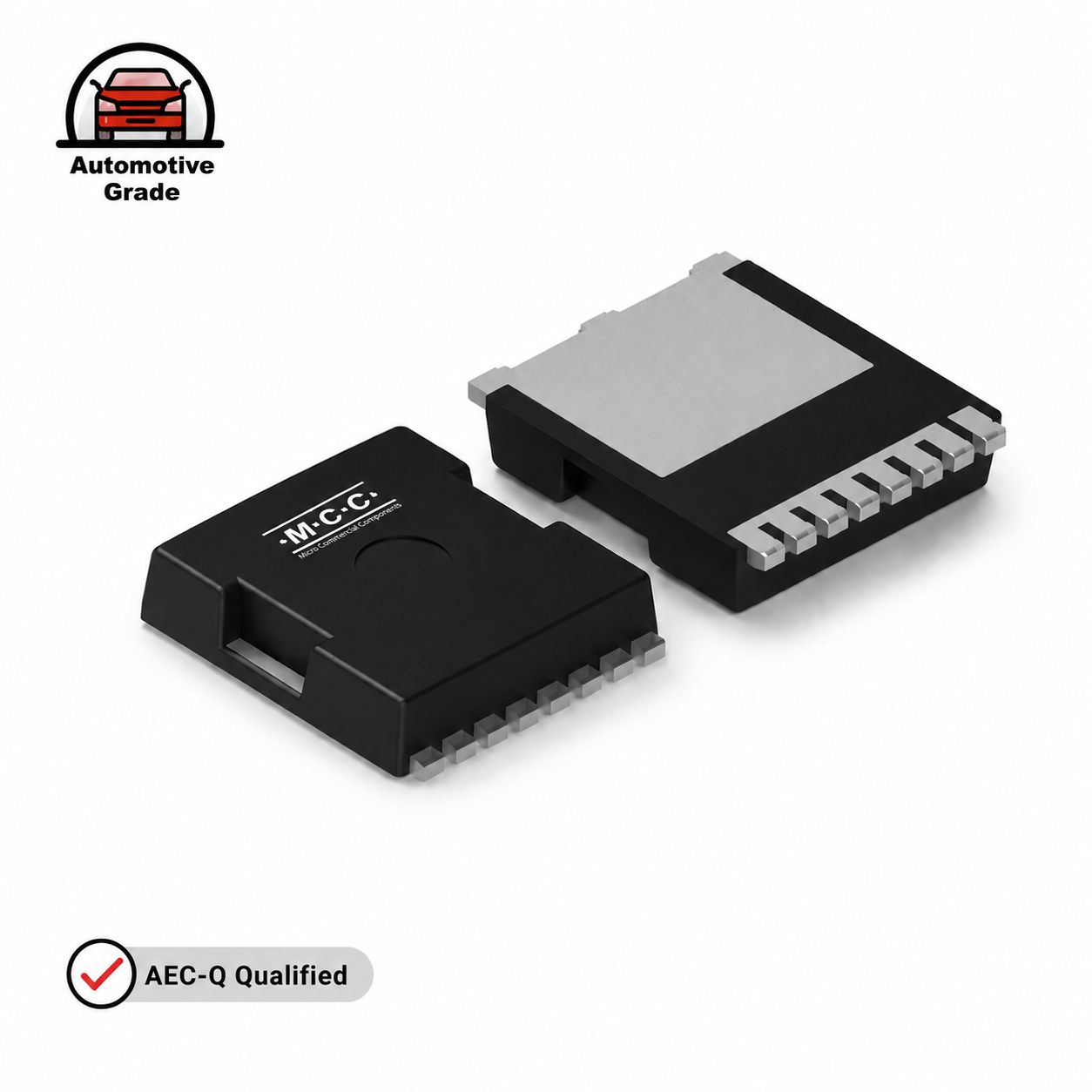

40 to 100V N-Channel MOSFET

Features & Benefits:

Ultra-Low RDS(on): Down to 1.0mΩ minimizes conduction losses and maximizes power conversion efficiency
Split Gate Trench (SGT) Technology: Reduces switching losses for improved high-frequency performance and reduced gate charge
High Current Capability: Supports continuous drain current up to 364A for demanding power applications
Wide Voltage Portfolio: Available in 40V, 60V, 80V, and 100V ratings to support diverse power architectures
TOLL-8L Package: Low parasitic inductance improves high‑frequency switching performance
Superior Thermal Performance: Junction-to-case thermal resistance down to 0.35°C/W improves heat dissipation under heavy load
AEC-Q101 Qualified Options: Suitable for automotive and other high-reliability applications

MCTL1D4N04YL-TP
MCTL1D0N04YHE3-TP
MCTL1D7N06YL-TP

MCTL1D0N08Y-TP
MCTL1D0N08YHE3-TP
MCTL1D5N10YH-TP

MCTL1D9N10YH-TP

Product Highlights

40V to 100V N-Channel Power MOSFET

1

High Current Capability for Demanding Power Systems:

Supporting continuous drain current up to 364A, the MCTL1DxN series enables high-power designs for servers, telecom equipment, battery systems, and industrial power conversion applications.

40V to 100V N-Channel Power MOSFET

2

Ultra-Low RDS(on) for Maximum Efficiency:

With on-resistance as low as 1.0mΩ, the series significantly reduces conduction losses, improving overall efficiency while minimizing heat generation in high-current switching applications.

40V to 100V N-Channel Power MOSFET

3

Thermally Optimized TOLL-8L Package:

The TOLL-8L package combines low thermal resistance with low parasitic inductance, enabling excellent heat dissipation, improved switching performance, and higher power density for compact PCB layouts.

40V to 100V N-Channel Power MOSFET

4

Split Gate Trench Technology for Fast Switching:

Advanced SGT MOSFET technology reduces switching losses and gate charge, enabling efficient operation in high-frequency power conversion applications while reducing driver power requirements.
