Ultra-Low 5.2mΩ RDS(on) in a Compact DFN5060 Package

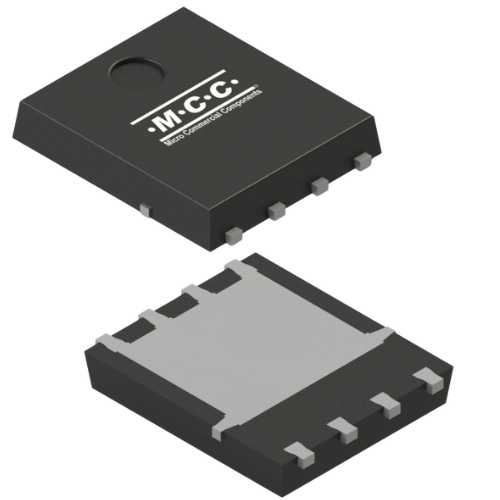

MCC's MCAC5D2N10Y-TP is a 100V N-Channel MOSFET that delivers breakthrough efficiency through advanced Split Gate Trench (SGT) technology, featuring a low RDS(on) of 5.2mΩ. The compact DFN5060 package combines superior thermal performance with space-saving design, enabling stable operation in power-dense applications. With optimized low gate charge and lower conduction losses, this solution is ideal for high-frequency DC-DC converters, motor drivers, and other demanding power systems where thermal management and efficiency are critical.

Features & Benefits:
  • Split Gate Trench (SGT) Power MOSFET Technology for enhanced efficiency
  • Low RDS(on) of 5.2mΩ for reduced conduction losses
  • Low gate charge for fast switching and low drive requirements
  • Compact DFN5060 package with an optimized footprint of 5.0mm x 6.0mm
  • Low thermal resistance for improved heat dissipation and reliability

Product Highlights

100V N-Channel MOSFET

1

Improved Energy Efficiency

Low RDS(on) and gate charge minimize power losses, helping to maximize system efficiency.

100V N-Channel MOSFET

2

Space Saving Design

Compact DFN5060 package (5.0mm x 6.0mm) allows for high-density PCB layouts and smaller end products.

100V N-Channel MOSFET

3

Reliable Thermal Performance

Optimized package and low thermal resistance ensure stable operation and longer device lifespan, even in high-power applications.

100V N-Channel MOSFET

4

Faster Switching

Reduced gate charge enables quicker switching speeds, supporting high-frequency designs and reducing overall system response time.

Applications

battery system industrial  mcc semi micro commercial components 500x300

solenoid application example - mcc semi - micro commercial components 500x300

Effective for controlling LED lighting systems - mcc semi - micro commercial components - 500x300

protecting battery packs in cordless tools  - mcc semi - micro commercial components - 500x300

Power Management

Industrial Automation

Lighting

Consumer Electronics

  • Battery management systems
  • DC-DC converters
  • Power supply units
  • Motor drivers
  • Relay replacements
  • Solenoid drivers
  • LED lighting control
  • Electronic ballasts
  • Battery management systems
  • Lighting control
  • Motor drivers



Product Attributes, Parametrics & Datasheet

Product

Type

Package

Drain Source Voltage VDS

Drain Source On-Resistance (max.) RDS(on)

Continuous Drain Current ID

Total Power
Dissipation
PD

Mounting Type

Datasheet

MCAC5D2N10Y

Power MOSFET

DFN5060

100V

117V

117A

138W

Surface Mount

Info
